Product Details:
|
| Product Name: | Indoor Full Color LED Display | Cabinet Material: | Iron/Die-casting Aluminum |
|---|---|---|---|
| Module Size: | 256mmx128mm | Screen Dimension: | Customized Design |
| Brightness: | >1500cd | Warranty: | 5 Years |
| Life Span: | 100000H | MTBF: | 10000H |
| High Light: | P2mm Concert LED Display,1500cd Concert LED Display |
||

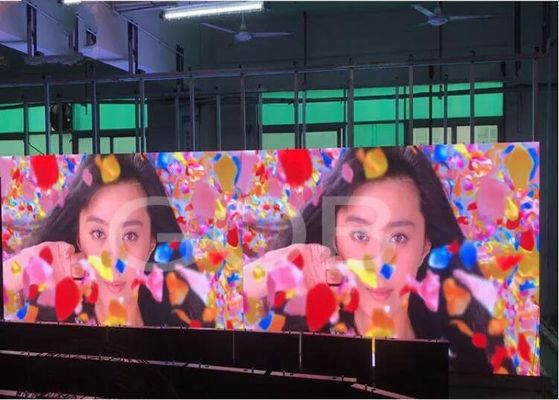

HD P2mm Full Color LED Display for Indoor TV Showroom and concert
♦ High-quality accessories, complete matching, one-stop shopping, perfect after-sales.
A. Guide Visual has engineers who can speak English;
B. Guide Visual provides all LED display relative solution;
C. 24 hours and 365 days open for service.
D. Free training about led display in factory with our professional engineer.
E. Technical Support: We could send out engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & plane ticket.
♦ Product specification
| indoor SMD P2 | ||||||||||||||
| Lamp size | 1515 | |||||||||||||
| Resolution/mm | 2mm | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 250000/m² | |||||||||||||
| Module resolution | 128x64 | |||||||||||||
| Module size/mm | 256x128 | |||||||||||||
| View distance | ≥1m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >1500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/32 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >1600Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 8 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
Our team will be forever here to offer you full supports
Package&Delivery
Our Certificate
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 8-10 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
