Product Details:
|
| Product Name: | Dance Floor LED Display | Cabinet Material: | Steel Or Aluminum |
|---|---|---|---|
| Module Size: | 250mmx250mm | Screen Size: | Customized Design |
| Brightness: | 2100cd | Warranty: | 5 Years |
| Life Span: | 100,000H | MTBF: | 10,000H |
| High Light: | P4.81mm Dance Floor LED Display,2100cd LED Disco Screens,2100cd Dance Floor LED Display |
||

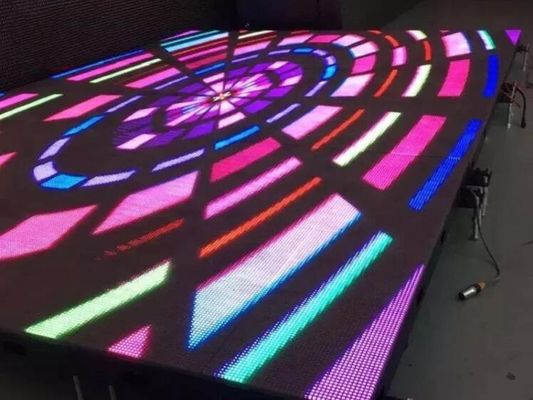

P4.81 Interactive Dance Floor LED Display, Rental Indoor Disco Dance Led Screen
♦ Description
Led video dance floor is a new digital terrestrial. Our led dance floor uses a high strength resin mask, the support of solid aluminum die-casting equipment, big load-bearing capacity, easy to connect, can be directly stampede with highly performance protective structure, can be connected seamlessly next panel, random combinations.
♦ RGB colorful LED dance floor
Ø Unlimited programming effects
Ø Special lighting effect
Ø 32-bit colour (16.7 million color combinations)
Ø Modular & highly portable
Ø Quick and easy installation
Ø More affordable than any existing solutions
Ø Sealed for long, durable lifetime
♦ Product specification
| LED Specifications | ||||
| 1 | Type | SMD | ||
| 2 | LED Standard | Real Pixel(1R1G1B) | ||
| 3 | Red Wavelength | 625-630nm | ||
| 4 | Green Wavelength | 515-530nm | ||
| 5 | Blue Wavelength | 465-475nm | ||
| Module Specifications | ||||
| 1 | Pixel Pitch | 4.81mm | ||
| 2 | Resolution | 52x52dots | ||
| 3 | Module size | 250x250mm | ||
| Cabinet Specifications | ||||
| 1 | Cabinet Size(W*H) | 500x1000mm | ||
| 2 | Cabinet Resolution | 104x104dots | ||
| 3 | Pixel Density | 43222dots/㎡ | ||
| 4 | Cabinet Weight | ≤6.5kg | ||
| 5 | Material | die casting aluminum | ||
| 6 | Flatness of cabinet | ≤0.3mm | ||
| Screen Parameters | ||||
| 1 | Color /Brightness Calibration | Yes | ||
| 2 | Color Temperature(K) | 3000-10000 | ||
| 3 | Light Centre Distance Deviation | ＜3% | ||
| 4 | Brightness Uniformity | ≥97% | ||
| 5 | Color Uniformity | Within ±0.003C×,Cy | ||
| 6 | Contrast Ratio | 5000:1 | ||
| 7 | View Angle | Horizontal160°/ Vertical 160° | ||
| 8 | Input Voltage | AC100~240V(50-60Hz) | ||
| 9 | Power Consumption | Max:800w/㎡ Avg:280w/㎡ | ||
| 10 | Driving Method | 13 scaning | ||
| 11 | Protection Level | IP65 waterproof | ||
| 12 | Grey Scale Levels | R(256) G(256) B(256) | ||
| 13 | Life Span | 100,000 Hrs | ||
| 14 | Temperature-Operating | -20 — 40℃ | ||
| 15 | Humidity-Operating | 10 - 99% | ||
| 16 | Features | anti-slip,anti-collision,big load-bearing capacity | ||
| 17 | Usage | led floors, led wall background | ||
| 18 | Display function | txt, picture, video | ||
♦ Packaging and shipping
Wooden case or flight case package are available
Shipping by sea, air or DHL, multiple shipping ways for your choice.
♦ Applications
Stage, Sports, advertising, traffic, events, stadium, shopping center, airport, exhibitions, car shows, fashion
shows, concerts, ceremonies, entertainment, etc.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service, No MOQ
2. Easy installation, regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case, you are the boss.
♦ Service
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing :
1, Dimension ( Width and Height)
2, Location of installation. ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
Our team will be forever here to offer you full supports !!!
