Fine Pitch LED Shelf Display GOB Surface For Goods Showcase

Fine Pitch LED Shelf Display GOB Surface For Goods Showcase
Fine Pitch LED Shelf Display GOB Surface For Goods Showcase
Fine Pitch LED Shelf Display GOB Surface For Goods Showcase Fine Pitch LED Shelf Display GOB Surface For Goods Showcase Fine Pitch LED Shelf Display GOB Surface For Goods Showcase Fine Pitch LED Shelf Display GOB Surface For Goods Showcase

Large Image :  Fine Pitch LED Shelf Display GOB Surface For Goods Showcase

Product Details:
Place of Origin: China,Shenzhen
Brand Name: X-media
Certification: CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Model Number: P1.25mm
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Flight case, wooden case, carton box and foam package
Delivery Time: 5~8 working days
Payment Terms: T/T, Wester Union, Money Gram, Cash
Supply Ability: 5,000sq.m/month

Fine Pitch LED Shelf Display GOB Surface For Goods Showcase

Description
Product Name: Shelf Indoor Led Display Cabinet Material: Aluminum
Module Size: 150mmx56mm Screen Size: Customized Design
Brightness: 800cd Warranty: 5 Years
Life Time: 100,000H MTBF: 10,000H
High Light:

Fine Pitch LED Shelf Display

,

GOB Surface LED Shelf Display

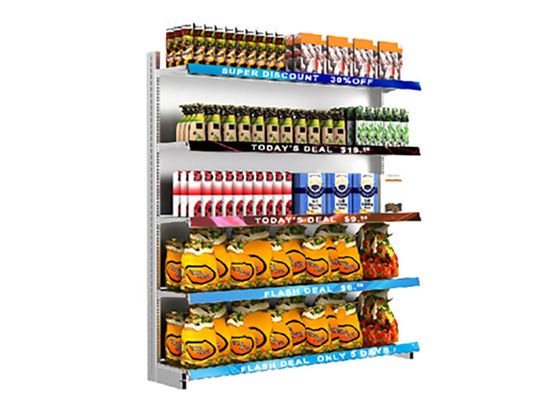

P1.25 GOB Retail Shop Shelf Indoor LED Display, LED Shelf Display For Shopping Mall





P1.25 Full Color Indoor LED Shelf Sign for Shopping mall super market

1. Specially designed for indoor commercial application

2. P1.25,Fine pitch product

3. Pannel size W300mm(multiple)*60mm*D24mm

4. Fast installation,independent control,show LOGO/text/poster etc.

5. Aluminum profile cabinet material,achieve light weight,can use independently or cascading.

6. Use cloud controller,controlled by 4G,WIFI,USB,etc.

7. Multiple Fixing Plate,easily fixed to goods shelf,goods showcase,etc.


Features
Available pixel pitch: Indoor 1.25mm
Available size 300x60mm, 600x60mm, 900x60mm, 1200x60mm
Aluminum profile , built-in receiving card, PSU separately
Support independent control or group control remotely via 4G, Wi-Fi or USB
GOB surface processing technology





Item Parameters
Model P1.25 COB
Pixel Pitch(mm) 1.25
Physical Density (dot/sqm) 640,000
LED Configuration 1RGB
LED Type COB
Module Size (mmxmm) 150x56.25
Module Resolution (PXxPX) 120×46
Scanning mode 1/45
Brightness(cd/sqm) 500-800
Grey Scale 14bit
Refresh Rate(Hz) 3840z
Drive Mode Constant Current Drive
Horizontal Viewing Angle(Deg) 170
Vertical Viewing Angle(Deg) 170
Cabinet Resolution(PXxPX) 240x46
Module Power Consumption(w) 40
Cabinet Max Power Consumption(w) 130
Cabinet Average Power Consumption(w) 40
Cabinet Size(mmxmm) 300x56.25x60mm
Cabinet Weight(kg) 0.35kg
Cabinet Thickness(mm) 60mm
Cabinet Material Die-casting Aluminum
Color(M) 16.7
Input Voltage AC100V-240V +/-10%
Refresh Frame Frequency(Hz) 50-60
Protection Level IP43
Working Environment Indoor
Working Temperature(ºC) -40°-+60°
Storage Humidity(RH) 40%-60%
Life Span(H) 100,000



Product details

Fine Pitch LED Shelf Display GOB Surface For Goods Showcase 0

Fine Pitch LED Shelf Display GOB Surface For Goods Showcase 1

Fine Pitch LED Shelf Display GOB Surface For Goods Showcase 2

Fine Pitch LED Shelf Display GOB Surface For Goods Showcase 3

Fine Pitch LED Shelf Display GOB Surface For Goods Showcase 4



Certification

Fine Pitch LED Shelf Display GOB Surface For Goods Showcase 5



Our factory

Fine Pitch LED Shelf Display GOB Surface For Goods Showcase 6



Our services

Pre-sale service:
1. Reply enquiry in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.


FAQ

Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.

Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.

Q3: Do you offer guarantee for the led display products?
A: Yes, we offer 2 year warranty for our products in copper wire led and 3 years warranty for our gold wire product.

Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can reply on us.





Buy guides:
In order to save you time avoid no necessary troubles ,please follow the steps bellowing :
1,Dimension (Width and Height)
2,Location of installation. (picture is best)
3,Purpose. ( what are you going to do with the LED Curtain)
4,Star effect or video effect which you need.
