Product Details:
|
Product Name: | Transparent LED Screen | Cabinet Material: | Aluminum |
---|---|---|---|
Module Size: | 1000*500mm | Screen Dimension: | Customized Size |
Brightness: | 4200cd/sqm | Warranty: | 5 Years |
Life Span: | 100,000H | MTBF: | 10000H |
Highlight: | P19.23 LED See Through Screen,93 Transparent LED Video Screen,P19.23 Transparent LED Video Screen |

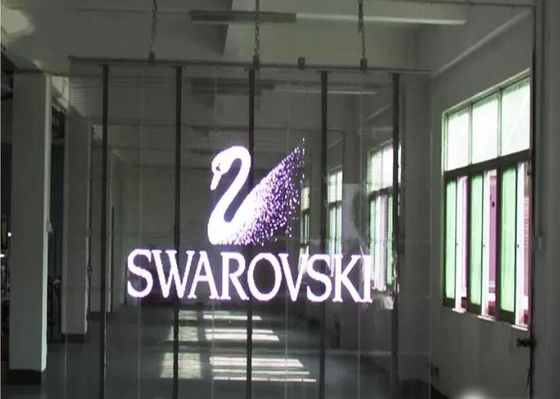

Light Weight Transparent Glass LED Display, P19.23 93% Transparent LED Video Screen
Product Features:
1.High transparency rate
93% transparency rate without affecting day-lighting.No need other heat dissipation system.
2.Light weight
PCB board is only 10mm thickness, light weight, and does not occupy space, without changing the appearance and structure of the building.
3. Fast installation
Fast lock systems ensure fast installation and saving time and labor cost.
4. High brightness and energy saving
6000nits brightness ensure the perfect visual performance even under direct sunlight .without and cooling system .saves lots of power.
5.Easy maintenance
Repairing single SMD without taking of single module of entire panel.
6.Wide applications

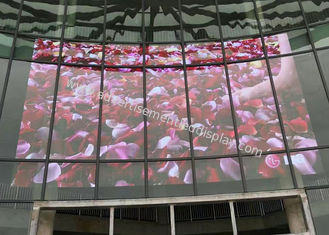

Any building with glass wall. Such as shopping mall, 4S store, jewelry store, clothing store, watch store, theatres, hotels, airport, museum, etc.
X-Media Co.,Ltd is one of the nation’s leading suppliers for LED electronic display screen. After 12 years' exploitation and development, our company have formed a perfect full-service system integrated by R&D, manufacture and domestic trading and foreign sales with standardized factories and modern production lines.
Parameter
LED Module | Pixel Pitch | 19.23mm | ||||||
LED Cabinet | Cabinet Size | 1000mmX1000mm*80mm | ||||||
Cabinet Resolution | 52pixels *52pixels | |||||||
Cabinets Material | Die casting Aluminum Cabinet | |||||||
LED Display | Pixel Density | 2704pixels/sq.m | ||||||
Drive IC | MBI5024 | |||||||
Power Supply | Series connection | |||||||
Brightness | >4200cd/sqm | |||||||
Display Color | 16.7million | |||||||
Viewing Angle | 110°(Horizontal),50°(Vertical) | |||||||
Best Viewing Distance | 2.5m~100m | |||||||
Max Power Consumption | 520w/sqm | |||||||
Average Power Consumption | 208 w/sq.m | |||||||
Refresh Rate | 16bit ≥2880; 14bit ≥4800; 10bit ≥9600 | |||||||
Input Voltage | AC220V/50H or AC110V/60H | |||||||
Output Voltage | DC5V 60A/80A | |||||||
Grey Scale Levels | 16bit | |||||||
Installation Way | Hanging / Stacking / Permanent Installation | |||||||
Drive IC | Taiwan MBI/Domestic High refresh rate IC(Optional) | |||||||
Life-span | 100,000 hours | |||||||
Protection Level | IP30 | |||||||
Failure percentage of leds | less than 0.0003 | |||||||
Working Temperature | -10~40°C | |||||||
Drive Mode | 1/6 scan constant current | |||||||
Working Humidity | 10%~90% | |||||||
LED Encapsulation | Self-development Side view LED lamp | |||||||
Eliminate Ghost Line | Yes | |||||||
Working Voltage | DC5V | |||||||
weight | <9.6kg | |||||||
Control method | Synchronization & Asynchronization | |||||||
Control System | Control System | Mooncell/ Nova/ Linsn(Optional) | ||||||
Software | LED Studio | |||||||
Input Signal | DVI/HDMI/DP | |||||||
PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vist |
Methods for Quality Assurance
a. Aging testing :100% fully test Condition: 72 hours with 256 gray level
b. Vibration Testing:Condition: 3-5 min up and down in 5mm range
Advantage
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 8-10 working days
8. Excellent R&D team,factory Price and assure you quality goods.
Payment and delivery
1) T/T, 30% deposit, 70% before shippment.
2) 100% in advance.
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and .
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 12 years.Mass and professional production ensure
our led display’s competitiveness.
