Product Details:
|
| Product Name: | Dance Floor LED Display | Cabinet Material: | Steel Or Aluminum |
|---|---|---|---|
| Module Size: | 250mmx250mm | Screen Size: | Customized Design |
| Brightness: | 6000cd | Warranty: | 5 Years |
| Life Time: | 100,000H | MTBF: | 10,000H |
| High Light: | Car Show Dance Floor LED Display,Pitch 6.25mm Dance Floor LED Display,6.25mm interactive LED dance floor |
||

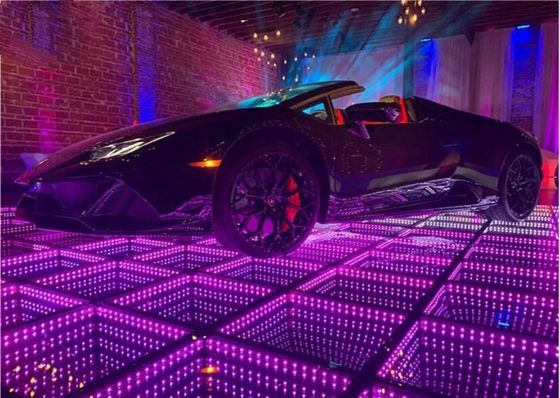

Car Show Dance Floor LED Display Interactive Dance Led Screen For Entertainment
1, the high strength wear resistant antiskid material, can be directly trample, carry up to 1000 kg weight per square metre
2, can realize seamless splicing, enclosure optional combination, make the image more exquisite and complete
3, can realize the virtual scenario screen interactive, experience the magic of interaction effect
4, high contrast, high refresh rate design, making the screen when rendering design without any delay phenomenon of ghosting
5, deep gray processing, RGB color and brightness of the synchronous adjustment, color is rich and exquisite, clear and natural
6, big Angle of view, more can meet the demand of the stage
7, professional cooling channel design, to ensure that the screen body heat export quickly and efficiently, make product performance is not affected by heat
8, Remove the replacement 8, support separate enclosure, maintenance more convenient
9, connectors to choose professional aviation plugs, quality safety guarantee
X-media LED display application: can be widely used in bar, club, theatre, theatre, multi-function hall, coffee shop, hotel, stage performances, music hall, commercial buildings, airports, shopping malls and other places
Product Specifications
| Module Parameter | |
| Size | 1000mm(H)×500mm(H) or 500mm(H)×500mm(H) |
| Module Resolution | 160(H)×80(V) or 80(H)×80(V) |
| Pitch | 6.25mm |
| Density | 25600 pixels/m² |
| LED Lamps | SMD2727 (Customizable Nationstar lamp) |
| Driver IC |
Universal chip (Customizable MBI5166/MBI5124) |
| Module Refresh | 3840Hz |
| Mask | Pure Black mask-high contrast screen |
| Cabinet Parameter | |
| Cabinet Weight | 15kg M2 |
| Driver Mode | Dynamic 1/4 scan , constant current driving |
| Cabinet Power | ≤300w |
| Cabinet Thickness | ≤63mm+5mm |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness Of White Balance | ≥6000cd/m² |
| View Angle | 160 degree ( horizontal) 160degree(vertical) |
| View Distance | 4m-20m |
| Gray Scale | 65536 |
| Display Color | 3-in-1 RGB |
| Brightness Adjustment | 100 levels |
| Power Supply | |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Maxim Power Consumption | 500 w/m² |
| Average Power Consumption | 200 w/m² |
| Control System | |
| Correction Scale Level | 16bits |
| Screen Refresh Frequency | 3840Hz |
| Gamma Correction | -5.0—5.0 |
| Support Input | HDMI,DVI,VGA,RJ45,USB,Serial Port |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200,1920×1080 |
| Color Temperature | 5000-9300 adjustable |
| Brightness Correction | dot by dot, module by module, cabinet by cabinet |
| Reliability | |
| Temperature | Storage:-35℃-+80℃ ; Operation :-25℃-+45℃ |
| Humidity | Storage:10-70% RH ; Opeartinon:10--60% RH |
| Operating Life | ≥100,000 hours |
| MTBF | ≥5000 hours |
| Continuous Working Time | ≥48 hours |
| Protection Level | IP65or IP45 |
| Out of Control Pixel Rate |
0.03% |
Detail Show
Shenzhen X-media Co.,Ltd is a high & new technology enterprise. We are specialized in high quality LED components, LED displays products including research, development, production and marketing. Experienced with many years of development, nowadays X-Media LED owns its factory workshop area about 3,000sqm, monthly capacity is 2,000sqm, number of employees more than 100. Company has the international first-class technology development talents and advanced production equipments, a comprehensive standardized management and perfect production process.
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing :
1, Dimension (Width and Height)
2, Location of installation. (picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
