commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen
air port LED display screen, telecommunication LED display screen system for information showing and instruction .
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system
4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.
It can be used on the shopping mall,bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi, and so on. we adopt many methods and very good after-sales service to sell our product all over the world.. Whenever and wherever we are , we always take the principle that professional makes good quality, provide the perfect product and service for our customer.
|1. Item Name

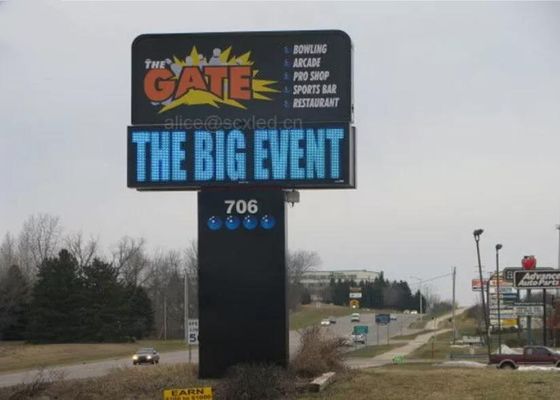

||p6 outdoor waterproof advertising led display with high definition image
|2. pixel tube:
pixel pitch:6mm; primary colors: pure red+ pure green +pure blue;
color composing:3 in 1 or 1R1G1B
Density 62500dots/sq m; SMD3528
|3. unit box
module size:192mm×196mm; Module resolution:32*32
cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;
|4. whole screen:
the optimum viewing angel :horizontal 110°, vertical 50°
viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC MBI5024
|5. operating voltage
AC220V±10% or 110V±10% ,average consumption:500 W/sq m
max consumption:≤650 W/ sq m.
|6. main parameter
1) driving mode: 1/8 scan
2) refreshing rate:≥400Hz/s
3) frame frequency:≥60Hz/s
4) gray scale/color:≥16.7Mcolors(Synchronized)
5) manage gray:≥72bit
6) brightness:≥7000cd/sq m
7) color temperature condition:3500K~9500K,be adjustable
8) adjusting style of brightness: hand movement/auto
9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
10) average trouble-free time:≥5000hours
11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
12) switch power loading:5V/40A
13) display mode of computer:1024×768
Methods for Quality Assurance
100% fully test Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan and SMD led display module will be available
The steer consturction is very stable for led display,and you can purchase from your local market
The package and shippment
we can receive all kinds of transportation. and the shippment term. FOB and CIF, EXW and so on.
we can choose the best shippment which is convenient to you !
X-Media group can give you the short delivery time and With the large production ability ,
you can feel free about this, By air, by train, by sea?
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
1. 5 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6. Small order accepted.
In order to save you time avoid no necessary troubles, please follow the steps bellowing :
1, Dimension (Width and Height)
2, Location of installation. (picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
