Product Details:
|
| Product Name: | Stadium Perimeter Led Display | Cabinet Material: | Al-Mg |
|---|---|---|---|
| Module Size: | 320mmx160mm | Screen Size: | Customized Design |
| Brightness: | 8000cd/sqm | Warranty: | 5 Years |
| Life Time: | 100,000H | MTBF: | 10,000H |
| Highlight: | P8mm Football Stadium Advertising Boards,8000cd Perimeter LED Screen,8000cd Football Stadium Advertising Boards |
||

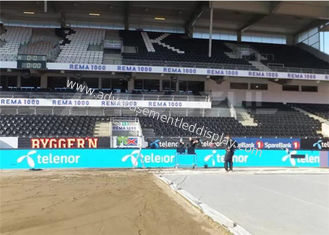

Al-Mg Cabinet P8 High Brightness Stadium Perimeter LED Display For Football Stadium
♦ Soft top protect:
1. The angle of the cabinet is adjustable; Bracket folds up available;
2. Easy for installation and disassembly;
3. High brightness and be adjustable, meets the need of the changing requirement of customer in environments
♦ High Brightness with Low Luminous Decay
MP high bright led sign in stadium adopted high quality LED to make sure the brightness always in a high level, FO series can produce crystal clear images in virtually any lighting conditions, even in the sun directly.
♦ Technical specification
| outdoor SMD P8 | ||||||||||||||
| Resolution/mm | 8 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 15625/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 256x128 | |||||||||||||
| View distance | 7-500m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 160(degrees) | |||||||||||||
| Vertical view angle | 160(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3840Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >10000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <950W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
♦ Production process
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea, air or DHL, multiple shipping ways for your choice
♦ Applications
FAQ
Q1: What's the pixel pitch for stadium perimeter LED Display Screen ?
A1: Indoor & Outdoor P6mm/P8mm/P10mm)
Q2: Where is it used for?
A2: Indoor & Outdoor rental use. Widely used for backdrop of stage events, rental / hire business, liveshow, concerts, conference room, etc.
Q3: Can it play HD video?
A3: Yes, it can realize high definition video function with Novastar / Linsn / Huidu controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
X-Media is the professional manufacturer of outdoor, indoor LED Display Screen, LED Panel, LED Wall in Shenzhen, China with led display exported to more than 100 countries and regions, passed CE, ROHS FC Certifications.
is a good choice for your permanent install LED display needs and events rental led screen needs
Our team will be forever here to offer you full supports !!!
