5000cd/Sqm 10000H MTBF Outdoor LED Display P5 NTSC Stage LED Video Wall

5000cd/Sqm 10000H MTBF Outdoor LED Display P5 NTSC Stage LED Video Wall
5000cd/Sqm 10000H MTBF Outdoor LED Display P5 NTSC Stage LED Video Wall 5000cd/Sqm 10000H MTBF Outdoor LED Display P5 NTSC Stage LED Video Wall 5000cd/Sqm 10000H MTBF Outdoor LED Display P5 NTSC Stage LED Video Wall 5000cd/Sqm 10000H MTBF Outdoor LED Display P5 NTSC Stage LED Video Wall

Large Image :  5000cd/Sqm 10000H MTBF Outdoor LED Display P5 NTSC Stage LED Video Wall

Product Details:
Place of Origin: China,Shenzhen
Brand Name: X-media
Certification: CE/ROHS/ISO/CB/SASO/TUV/FCC/UL
Model Number: Outdoor P5mm
Payment & Shipping Terms:
Minimum Order Quantity: 5sq.m
Price: Negotiation
Packaging Details: Flight case, wooden case and carton box and foam package
Delivery Time: 8~10 working days
Payment Terms: T/T, MoneyGram,Cash
Supply Ability: 5,000sq.m/month

5000cd/Sqm 10000H MTBF Outdoor LED Display P5 NTSC Stage LED Video Wall

Description
Product Name: Rental LED Display Cabinet Material: Aluminum
Module Size: 320mm*160mm Screen Dimension: Customized Size
Brightness: 5000cd/sqm Warranty: 5 Years
Life Span: 100000H MTBF: 10000H
High Light:

5000cd/sqm Outdoor LED Display

,

10000H MTBF Outdoor LED Display

,

NTSC Stage LED Video Wall

Outdoor Waterproof P5 Stage Events LED Video Wall Rntal Screen with 5 Years Warranty

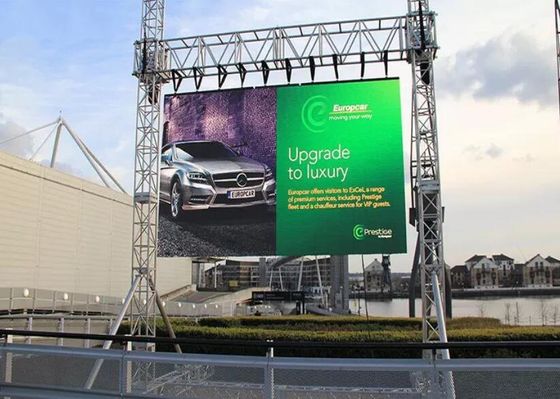

P5 Rental LED Screen Application



Certainly the best option for outdoor advertising, this rental LED display carries some features that make it highly suitable for outdoor areas. It can work in different brightness level and outdoor circumstances. Rental led display can also be used at stage, bank, promotion, exhibition, station, KTV, stadium, airport and other outdoor places.



P5 Rental LED Screen High Gray Scale - Better Picture



Our LED Display Screen is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray scale ensures the picture quality remains seamless.





P5 Rental LED Screen Wide Viewing Angle for Broader Reach



The display features a wide viewing angle of 120° horizontal and 120° in vertical which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering.



P5 Rental LED Screen Strict Aging Test



All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.



P5 Rental LED Screen Technical Parameters



Pitch size 5mm
Module size 320mm*160mm
Panel pixel(dots) 64*32
Pixel configuration 1Red,1Green,1Blue
Color scale 256-65536grade/16777216colors
Pixel density 40000 pixels/square meter
View angle(H/V) 160/120 degree
Brightness ≥5500cd/square meter
View distance 5-150m
Power consumption 100-1200W/square meter
Net weight 10kg/pcs
Operating temperature —25°C~+60°C
Operating humidity 10%—95%RH
Life time ≥100,000hours
Exchange frame speed >150frames per second
Refresh frame frequency 1920-3840Hz
Control distance 100m (without relay),single mode fiber:
20000m,multi mode fiber:500m-20km
Power 110V/220V/380V±15% 50Hz
operating system Windows98/Me/2000/Xp
Drive mode constant current driving
display mode VGA640X480—VGA1600X1024
Protections for outdoor display IP65
Accepting signal PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI



5000cd/Sqm 10000H MTBF Outdoor LED Display P5 NTSC Stage LED Video Wall 0



Installation Procedure

Outdoor Rental LED Display Panels P5 SMD 320*160mm Die Casting Aluminum Cabinet 1



Packing&Shipping



Packing: Wooden& Flight case are available

Shipping: By Air, Sea, DHL, UPS, EMS

Outdoor Rental LED Display Panels P5 SMD 320*160mm Die Casting Aluminum Cabinet 2



FAQ

Q1: What`s your payment term? How long it takes to delivery?

A: We accept T/T and L/C, For both T/T and L/C,Our average Production time is 16 days, after receiving the deposit.

Q2. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q3: What about your pre-sale service and post-sale service?
A: For pre-sale service: We have a professional sales team and a 8 years technical team who are willing to answer your question . We can offer a whole complete solution for your project!

For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts. Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

Q4: What's the control system?
A: We use Linsn, Nova ,Carlette control system.

Q5: What's the warranty of your LED Display Screen ?
A: We have a 5 year warranty for our led display screen, and 100,000 hours life span of the led lamps.

Q6. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the finished display cabinet.
