P4mm Huge Led Display , Commercial LED Screens 256mmx128mm

P4mm Huge Led Display , Commercial LED Screens 256mmx128mm

    • P4mm Huge Led Display , Commercial LED Screens 256mmx128mm
    • P4mm Huge Led Display , Commercial LED Screens 256mmx128mm
    • P4mm Huge Led Display , Commercial LED Screens 256mmx128mm
  • P4mm Huge Led Display , Commercial LED Screens 256mmx128mm

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: X-media
    Certification: CE/ROHS/ISO/CB/SASO/TUV/FCC/UL
    Model Number: P4

    Payment & Shipping Terms:

    Minimum Order Quantity: 5sq.m
    Price: Negotiation
    Packaging Details: Flight case, wooden case and carton box and foam package
    Delivery Time: 8~10 working days
    Payment Terms: T/T, Western Union, MoneyGram,Cash
    Supply Ability: 5,000sq.m/month
    Contact Now
    Detailed Product Description
    Product Name: Outdoor Full Color LED Display Big TV Advertising Screen Cabinet Material: Iron
    Module Size: 256mmx128mm Screen Dimension: Customized Design
    Brightness: >5500cd Warranty: 5 Years
    Life Span: 100,000H MTBF: 10000H
    High Light:

    P4mm Huge Led Display

    ,

    256mmx128mm Commercial LED Screens

    ,

    P4mm Commercial LED Screens

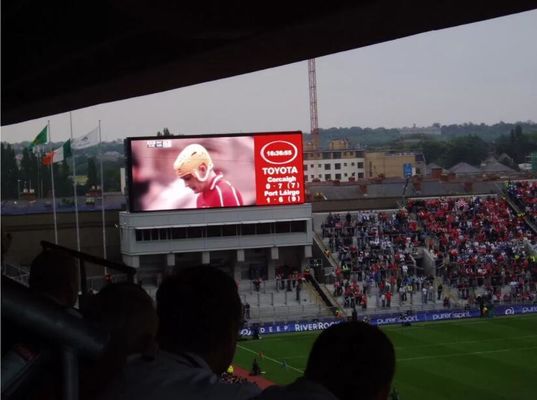

    5 Years Warranty Huge LED Screens P4 LED Digital Stadium Screen For Advertising





    Specifications :



    outdoor SMD P4
    Resolution/mm 4mm
    Pixel configuration 1R1G1B
    Pixel density/pixels/m² 62500/m²
    Module resolution 64x32
    Module size/mm 256mmx128mm
    View distance 4-300m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >5500cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 16bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
    Driving mode Constant driving current
    Scanning mode 1/8 SCANNING
    Frame rate 60Hz
    Refresh frequency >1200Hz
    Control mode Computer synchronous
    Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss
    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃
    Self-check technology LED spot self-check, communications check, power check,
    temperature monitor(need customization)
    Remote monitoring Remote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)
    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%



    Service

    1) Service principles
    Response in time, solve problems as soon as possible and ensure the use.

    2) Service period
    In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.

    3) Service scope
    If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.



    P4mm Huge Led Display , Commercial LED Screens 256mmx128mm 0



    P4mm Huge Led Display , Commercial LED Screens 256mmx128mm 1





    FAQ:

    Q1: What's the warranty of your LED Display Screen ?

    A1: We have a 5-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

    Q2: What about your pre-sale service and post-sale service?

    A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
    For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
    Also, we can send technicians to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

    Q3: Whats your payment term? How long it takes to delivery?

    A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
    Our average Production time is 10 days, after receiving the deposit.

    Q4: What's the control system?

    A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.
    For asynchronous control: We use ONBON or XIXUN control system.

    Q5: How can you ensure the led display product quality?

    A5: Our led display screen quality is our core competence, for 5 years, what we rely on.
    We have each standard process to make quality products.
    If any quality failures within warranty time, we will refund you .



    Welcome to visit our website and inquire us more info,waiting for you all the time!!!
