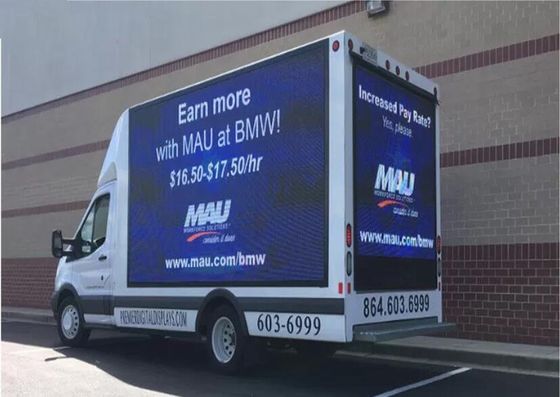

1415 Lamp Truck Mobile LED Display High Definition P3

1415 Lamp Truck Mobile LED Display High Definition P3

    • 1415 Lamp Truck Mobile LED Display High Definition P3
    • 1415 Lamp Truck Mobile LED Display High Definition P3
    • 1415 Lamp Truck Mobile LED Display High Definition P3
  • 1415 Lamp Truck Mobile LED Display High Definition P3

    Product Details:

    Place of Origin: China,Shenzhen
    Brand Name: X-media
    Certification: CE/ROHS/ISO/CB/SASO/TUV/FCC/UL
    Model Number: P3mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 5sq.m
    Price: Negotiation
    Packaging Details: Flight case, wooden case and carton box and foam package
    Delivery Time: 8~10 working days
    Payment Terms: T/T, Western Union, MoneyGram,Cash
    Supply Ability: 5,000sq.m/month
    Contact Now
    Detailed Product Description
    Product Name: Truck Mobile LED Display Cabinet Material: Iron
    Module Size: 192mmx192mm Screen Dimension: Customized Size
    Brightness: 5000cd/sqm Warranty: 5 Years
    Life Span: 100,000H MTBF: 10000H
    High Light:

    1415 Lamp Truck Mobile LED Display

    ,

    P3 Truck Mobile LED Display

    High Definition P3 Mobile Truck LED Display , advertising outdoor mobile led screen





    Product Description

    1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

    2. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

    3. Nice appearance and simple structures.

    1415 Lamp Truck Mobile LED Display High Definition P3 0



    1415 Lamp Truck Mobile LED Display High Definition P3 1

    1415 Lamp Truck Mobile LED Display High Definition P3 2



    Our Service:

    Pre-sales support
    1. We offered technical advice to our customers before buying our products.
    2. Help customers to choose suitable products within budget with most economy benefit.
    3. Design the framework structure to install our led products with technical drawing.
    4. We offered software customization for our customer’s specific usage.

    After- sales service
    1. We promise our customers 3 years warranty service!
    2. We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.
    3. We promise a life time follow up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
    4. We offered training to our customer who includes operating and maintenance of our products.



    Advantage :



    1 . Wide viewing angle: Viview led display show clear pictures or image without mosaics even when audiences see it from a small viewing angle;
    2 . Rich colors: With three basic colors (red, green and blue), 256-level gradation of each color, and form 16777216 kinds of colors;
    3 . Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;
    4 . Good color blending: Display clear, exquisite, nature color video even at close distance;
    5 . Wide range of display content: Viview led wall can easily to display txt documents, doc documents, pictures and video
    6 . Led display usage range: Governmental plazas, Large-scale entertainment plazas, business and commercial centers, playground, station, airport and so on



    ♦ Production process:

    1) Incoming Inspection→2) SMD→3) Plug-in

    →4) Wave Soldering→5) After Welding→6) Testing

    →7) Semi Finished Aging→8) Module Assembly

    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

    1415 Lamp Truck Mobile LED Display High Definition P3 3





    ♦ Product specification

    indoor SMD P3
    Lamp size 1415
    Resolution/mm 64*64
    Pixel configuration RGB 3 in 1
    Pixel density/pixels/m² 111111/m²
    Module resolution 64x64
    Module size/mm 192x192
    View distance ≥4m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >5000cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 14 bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
    Driving mode Constant driving current
    Scanning mode 1/8
    Frame rate 60Hz
    Refresh frequency >1920Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡ <1000W
    Average power:/㎡ <320W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%



    ♦ Introduction

    Shenzhen SCXK electronic company was establieshed in 2005. With more than 10 years experience in led display industry, our clients cover more than 50 countries. We have built good reputation at home and abroad. Welcome for your visiting our factory.



    ♦ Why choose us:

    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s

    more,unique standardized and module production ensure our products continuous quality.



    Competitive Price

    With large scale production capacity and professional production technology,our company have built

    effective modular production.We always stick to promote the technical innovation and reduce cost to

    benefit customers.



    ♦ Packaging and shipping

    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.



    Our team will be forever here to offer you full supports !!!
