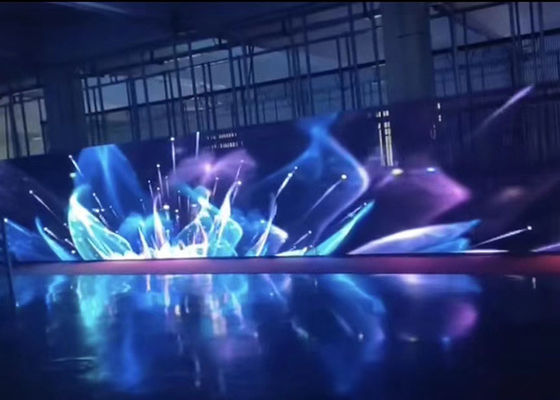

60 Transparent Rgb Glass Window LED Display 1200cd for building wall

60 Transparent Rgb Glass Window LED Display 1200cd for building wall

    • 60 Transparent Rgb Glass Window LED Display 1200cd for building wall
    • 60 Transparent Rgb Glass Window LED Display 1200cd for building wall
    • 60 Transparent Rgb Glass Window LED Display 1200cd for building wall
  • 60 Transparent Rgb Glass Window LED Display 1200cd for building wall

    Product Details:

    Place of Origin: China,Shenzhen
    Brand Name: X-media
    Certification: CE/ROHS/ISO/CB/SASO/TUV/FCC/UL
    Model Number: P3.91mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 5sq.m
    Price: Negotiation
    Packaging Details: Flight case, wooden case and carton box and foam package
    Delivery Time: 8~10 working days
    Payment Terms: T/T, Western Union, MoneyGram,Cash
    Supply Ability: 5,000sq.m/month
    Contact Now
    Detailed Product Description
    Product Name: Transparent LED Display Cabinet Material: Aluminum
    Module Size: 500mmx500mm Screen Dimension: Customized Size
    Brightness: 1200cd Warranty: 5 Years
    Life Span: 100,000hours MTBF: 10000H
    High Light:

    60 Transparent Rgb Glass Window LED Display

    ,

    1200cd Rgb Glass Window LED Display

    P3.91-P7.82 Glass Waterproof Transparent LED Screen High Brightness For Window





    Product Description

    Our signature service & product, provides Transparent LED Display screen glass content, software, and hardware that is specific to our customer’s needs and has been rented and installed worldwide. We proudly build our own software & content for our transparent LED glass guaranteeing client satisfaction.



    Great transparency from 60%-95%, it is installed close to the glass of shop window or large glass building wall. Looks like a totally transparent led video wall from far aways when more than 10m.



    Humanized design for easier installation



    High protection, waterproof, dustproof, anti-collision etc.



    Using high quality LED lamp, LED chip and driver IC to achieve engery saving

    60 Transparent Rgb Glass Window LED Display 1200cd for building wall 0





    Advantage

    1. High Degree of Visibility

    65% transparent see-through, so it is convenient for people inside and outside to look-through. The integreted LED lamps are ery tiny and almost invisible from outside of the building.

    2. Compact Design and Light Weight

    8mm thickness of the LED panel has it almost suitable for any glass wall building. The weight is only 12kg/sqm and minimizes the load to the glass wall.

    3. Ease of the Installation and Maintenance

    Our Glass LED Display No need to change any building structure. The modules can be stuck to the back of the glass wall by the special glue which presented by us. It needs only 10 second to install one module. Should any maintence occurs, it only requires to do it at the indoor.We also have P2.976-P6.25 P7.82-7.82, P5.2-P10.4, P7.82-P7.82, P10.4-P10.4





    Product Description



    Pixel Pitch 3.91mm-7.82mm
    Pixel Density 32768dots/sqm
    Color Configuration 1R1G1B
    LED Package SMD2121
    Module Size 500mm x 125mm
    Module Resolution 128 x 16
    Drive Mode 1/16 Scan, Constant Current
    Standard Cabinet Size 500mm x 1000mm or 1000mmx1000mm
    Cabinet Weight 7KG / 14KG
    Brightness >1200cd/sqm
    Viewing Distance 3m-80m
    Viewing Angle H: 120°; V:120°
    Refresh Rate 1920HZ
    Frame Rate 120frame/sec
    Grey Scale 16.7M colors(Synchronized)
    Power Input AC110V/ 220V ±10, 50HZ
    Max Power Consumption 450W/sqm
    Ave. Power Consumption 150W/sqm
    Storage Temperature -30~+70 degree
    Working Temperature -20~+50 degree
    Blind Spot Rate <1/10000
    MTBF >10,000 Hours
    Life Span >100,000 Hours
    Waterproof IP30





    Products

    60 Transparent Rgb Glass Window LED Display 1200cd for building wall 1

    60 Transparent Rgb Glass Window LED Display 1200cd for building wall 260 Transparent Rgb Glass Window LED Display 1200cd for building wall 3

    60 Transparent Rgb Glass Window LED Display 1200cd for building wall 4





    Company Information


    Shenzhen ShiChuangXinKe Electronics Co.,Ltd (SCX LED) is a high & new technology enterprise. We are specialized in high quality LED components, LED displays products including research, development, production and marketing. Experienced with many years of development, nowadays SCX LED owns its factory workshop area about 3,000sqm, monthly capacity is 2,000sqm, number of employees more than 100. Company has the international first-class technology development talents and advanced production equipments, a comprehensive standardized management and perfect production process.



    P3.91-7.82 Glass Transparent Led Display 32768 Pixels / Sqm High Brightness For Window



    Certificate

    60 Transparent Rgb Glass Window LED Display 1200cd for building wall 6



    Packaging and shipping
    Shipping by sea,air or DHL,multiple shipping ways for your choice.

    Full Color 4500nits SMD2020 Transparent LED Screen P3.91 6



    Our service



    Warranty
    1.We guaratee all our display, modules, spare parts for 3 years.
    2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
    3.After warranty, we also can offer you the parts for replacement at our bottom price.
    4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
    when we get it and offer you a good solution to solve the problem.
    5.We also could solve problems for you antil it recovers well by remote control!

    Installation
    1.We can assist the training and technical support for the customer in the factory, if the customer require so.
    2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
    3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need
