Product Details:
|
| Product Name: | Digital Floor Led Display | Cabinet Material: | Steel Or Aluminum |
|---|---|---|---|
| Module Size: | 250mx250mm | Screen Size: | Customized Design |
| Brightness: | 6000cd | Warranty: | 5 Years |
| Life Span: | 100,000H | MTBF: | 10,000H |
| High Light: | P6.25 Dance Floor LED Display,250mx250mm Lighted Floor Panels,P6.25 Lighted Floor Panels |
||
P6.25 Stage Digital Floor Led Display, Iron Cabinet Floor 3d Led Dance Floor For Concert

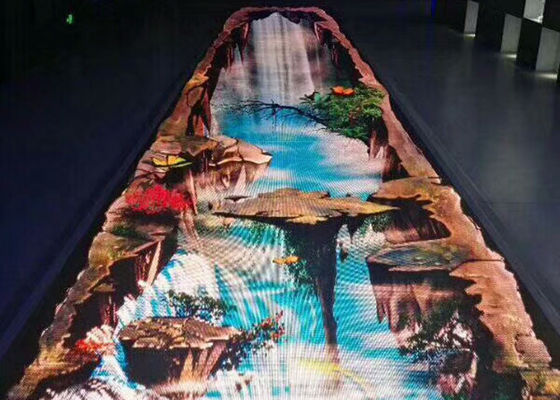

Floor LED Screen P6.25 is designed into tiling module which turns the inanimate floor into an amazing stage video displaying surface with colors, patterns, videos and interactive performances. Designed based on concept of PASSION digital stage, which is a brand-new form digitally expressing floor. It also brings the best expressing form for floor for creating scene and interacting with shows in stage.high grey grade, the screen picture will be extremely soft and vivid.
Dnace Floor LED Screen feature
High Weight Load [200kg/S ( S≥160*160 mm) Al-alloy Structure, Super-wearable Surface, Sealed Structure, High Protection Level (IP65) 14Bits Processing Depth, 3-in-1 SMD Technology The best color uniformity
Adopt the color and brightness revised technology, the uniformity can reach the best level. The definition of showing picture is very high, Strong and durable aluminum alloy is used to build its structure and its facade is made of super-wearable rosin plastic, which endures hundreds of kgs stuff onto its facade moving and trampling.
| New style SMD p6.25 full color waterproof stage floor tile dance led screen | |||||||||
| LED Lamps | Type | SMD2727(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 6.25mm | |||||||
| Module Size | 250mx250m | ||||||||
| Module Resolution | 40dots*40dots | ||||||||
| LED Cabinet | Cabinet Size | 1000mmX500mm | |||||||
| Cabinet Resolution | 160pixels *80pixels | ||||||||
| Cabinets Material | steel or aluminium | ||||||||
| LED Display | Pixel Density | 25600pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >6000cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 160°(Horizontal),160°(Vertical) | ||||||||
| Best Viewing Distance | 1m~100m | ||||||||
| Max Power Consumption | 1000w/sq.m | ||||||||
| Average Power Consumption | 600 w/sq.m | ||||||||
| Refresh Rate | 3840hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 16bit | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP65 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃~65℃ | ||||||||
| Drive Mode | 1/5 scan constant current | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control method | Synchronization & Asynchronization | ||||||||
| Control System | Control System | Mooncell | |||||||
| Software | LED Studio | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | ||||||||
Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 5 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6. Small order accepted.
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The package and shippment
We can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
X-media group can give you the short delivery time and With the large production ability ,
you can feel free about this . By air, by train, by sea?
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly. What’s
more, unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production. We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales: Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales: We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and .
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 8-10 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 12 years.Mass and professional production ensure
our led display’s competitiveness.
