P1.667mm Fine Pixel Pitch LED Display , GOB hd led video wall

GOB P1.667mm LED Screen Indoor Waterproof High Definition Led Video Wall

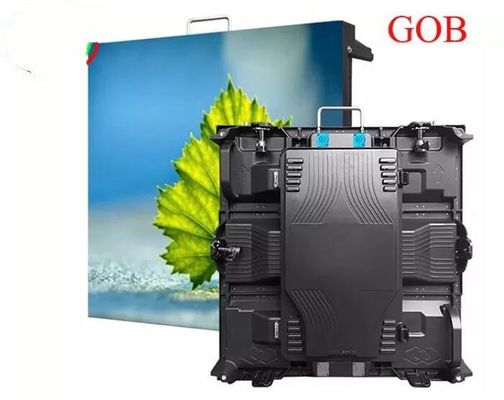

GOB Features

1, Cabinet size:400*300mm;
2, Light weight and slim design;
3, 100% front maintenance service available;
4, 27" golden aspect ratio 4:3 cabinet size;
5, Cabinet with side quick lock & position pin;
6, High gray scale at even low brightness;
7, Ultra wide view angle and superior display effect

8.Glue on board technology to make sure its waterproof, dustproof, anti-collision, anti-uv

9. Reliable quality LEDs and IC to reduce maintenance cost .

Company Introduction

X-Media LED has been devoting to high-quality LED display designing & manufacturing for over 12 years.
Fully equipped with professional team and modern facilities to manufacture fine LED display products,

Hot Electronics make products that have found wide application in airports, stations, ports, gymnasiums, banks, schools, churches, etc.
Our LED products are widely spread across 100 countries all over world, covering Asia, Middle East, America, Europe and Africa.
From stadium to TV station, to conference & events, Hot Electronics provides a wide range of eye-catching and energy efficient LED
screen solutions to industrial, commercial and governmental markets worldwide.

Pamameter

Module	Pixel Pitch	P1.667
	Module Size	200x150mm
	Module Resolution	120x90 pixels
	LED Lamp	SMD1010

LED Panel	Cabinet Size	400x300mm
	Cabinet Resolution	240x180 pixels
	Cabinet Materials	Die-casting Aluminum
	Cabinet Weight	≦6.5kg
	Pixel Density	359856pixels/m2
	Brightness	>1000cd
	Refresh Rate	3840HZ

LED Screen	Grey Scale	14-16 bit
	Avg.Power Consumption	100W/㎡
	Max.Power Consumption	800W/㎡
	View Angle	V 160°/ H 160°
	IP Rate	IP30
	Service	Front / Rear Maintenance
	Working Environment	-20℃~50℃, 10%-90% RH
	Storage Environment	-40℃~60℃, 10%-90% RH
	Input Signal	VGA,DVI,HDMI,SDI,etc





Product Description

4:3 Golden Ratio Design, 2k 4k 8k Perfect Display
4:3 cabinet size design, point-to-point matching 2K/4K/8K standard resolution; front maintenance design, wall-mountable installation, easy installation and maintenance; automatic brightness adjustment technology, ensuring viewers in any environment to watch comfortably; support power and signal redundancy backup to meet the needs of high security applications.





FAQ



Q1. Can I have a sample order for LED display?

A: Yes, we welcome sample order to test and check quality. Both for module or whole screen.

Q2. What about the lead time?

A:Order less than 100 square meter led time take 15 working days

Q3. Do you have any MOQ limit for LED display order?

A: Low MOQ, 5 square meter or a moudle checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 15 day on sea. a few days for customer clearance

Q5. How to proceed an order for LED display?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on the products?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity.

For defective batch products, we will repair them and resend them to you or we can discuss the solution

including re-call according to real situation.
