Product Details:
|
| Product Name: | Vehicle LED Display | Cabinet Material: | Iron |
|---|---|---|---|
| Module Size: | 320x160mm | Screen Dimension: | Customized Size |
| Brightness: | 5500cd | Warranty: | 5 Years |
| Life Span: | 100,000H | MTBF: | 10000H |
| High Light: | 10mm Pitch Truck Mounted LED Screen,32*16 Vehicle LED Display,32*16 Truck Mounted LED Screen |
||

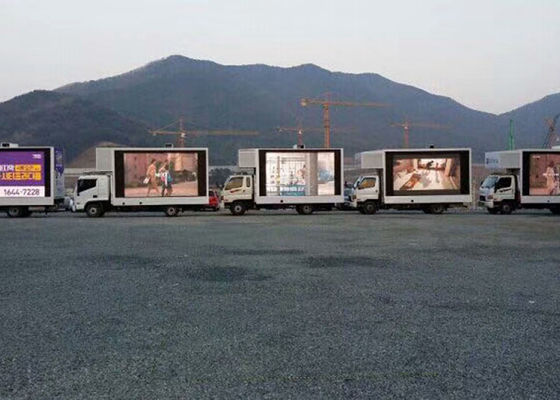

P10 Vehicle LED Display Truck Mounted Led Screens Multimedia Advertising
Special designs:
1. Electric leakage protection design with wooden floor Non-slip design
2. Led truck screen with anti-vibration, butterfly connector is more anti-vibration,
3. more stable current contact,less info loss,
4. more stable transmission function. Suitable for led screen truck.
♦ Applications of our products
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
♦ Product Description
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology
for nice image.
♦ Technical specification
| outdoor SMD p10 | |
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000m2 |
| Module resolution | 32*16 |
| Module size/mm | 320*160 |
| View distance | 12-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >5500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Driving mode | Constant driving current |
| Scanning mode | static dring |
| Frame rate | 60Hz |
| Refresh frequency | 1920Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | >72hours |
| Mean time Between Failure | >500hours |
| life time | >100000hours |
| Envirornment temperature range | operating temperature range -200c-500c |
| Maximun power :/m2 | -<800w |
| Average power:/m2 | <300w |
| Self-check technolog | LEDspot self-check,communication check,power check,temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control,record potential fault send out warning signs to the operators(need customization) |
| Software environment | windows NT,Windows 1999,Windows XP |
| Input power cable | AC110v to220v |
| Signal input | DVI |
| Warranty | 5 years quality warranty ,12years spare parts support |
Packaging & Shipping
Packaging: Wooden or flight case for option
Shipping: By air, sea, DHL and so on.
