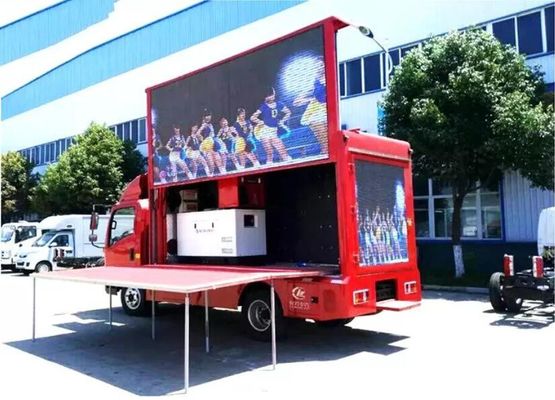

P6 Mobile LED Truck Advertising 27777 Dots / Sqm Lightweight

P6 Mobile LED Truck Advertising 27777 Dots / Sqm Lightweight

P6 Mobile LED Truck Advertising 27777 Dots / Sqm Lightweight
P6 Mobile LED Truck Advertising 27777 Dots / Sqm Lightweight
P6 Mobile LED Truck Advertising 27777 Dots / Sqm Lightweight
Product Details:
Place of Origin: China,Shenzhen
Brand Name: X-media
Certification: CE/ROHS/ISO/CB/SASO/TUV/FCC/UL
Model Number: P6mm
Payment & Shipping Terms:
Minimum Order Quantity: 5sq.m
Price: Negotiation
Packaging Details: Flight case, wooden case and carton box and foam package
Delivery Time: 8~10 working days
Payment Terms: T/T, MoneyGram,Cash
Supply Ability: 5,000sq.m/month
Contact Now
Detailed Product Description
Product Name: Outdoor Display Video Cabinet Material: Iron
Module Size: 192mmx192mm Screen Dimension: Customized Size
Brightness: 5500cd/sqm Warranty: 5 Years
Life Span: 100,000hours MTBF: 10000H
High Light:

P6 Mobile LED Truck Advertising

,

27777 Dots / Sqm Mobile LED Truck Advertising

Truck Advertising mobile LED Display Full Color Rgb P6 27777 Dots / Sqm Pixel





Our advantage:

1) Manufacturer with over 12 years experience in electronic goods & PCB assembly.
2) over 400 employees.
3) 6 high-speed Panasonic SMT machine, 6 Yamaha SMT machine, 2 AOI testing equipment, etc.
4) 10 production lines.
5) 6S management.
6) Passed ISO9001:2008 & ISO14001:2004 and CE/RoHS/FCC certified



Features:



1. High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.



2. No mosaic display due to excellent flatness and nice uniformity of light-emitting



3. Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.



4. Virtual pixel display screen can be adopted for outdoor displays to increase the resolution up to four times of real pixel, making the images softer and vivider



5. LED Single-lamp maintenance with low cost.



6. Good heat dissipation capability because of the unique design of vent fan.



7. Environmental-friendly and energy-saving.



Product Description

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

2. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

3. Nice appearance and simple structures.



Our Service:

Pre-sales support
1. We offered technical advice to our customers before buying our products.
2. Help customers to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our customer’s specific usage.

After- sales service
1. We promise our customers 5 years warranty service!
2. We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.
3. We promise a life time follow up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.



Advantage :



1 . Wide viewing angle: Viview led display show clear pictures or image without mosaics even when audiences see it from a small viewing angle;
2 . Rich colors: With three basic colors (red, green and blue), 256-level gradation of each color, and form 16777216 kinds of colors;
3 . Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;
4 . Good color blending: Display clear, exquisite, nature color video even at close distance;
5 . Wide range of display content: Viview led wall can easily to display txt documents, doc documents, pictures and video
6 . Led display usage range: Governmental plazas, Large-scale entertainment plazas, business and commercial centers, playground, station, airport and so on





Parameters of our truck LED display :

Market Character P6(trend) P8(hot sale) P10(popular)
Pixel Pitch 6mm 8mm 10mm
Module size 192x192mm 256x128mm 320x160mm
Pixel Density 27777dot/sqm 15625dot/sqm 10000dot/sqm
Pixel configuration SMD3535 SMD3535 SMD3535
Brightness above 5500cd above 5500cd above 6500cd
Drive method 1/8 scan 1/4 scan 1/2scan
Mask of the module Better shine
Signal cables In the back of the module, with horns socket or butterfly clasp , it will increase the stability of signal transimission , avoid the loose when truck shock
LED chip Epistar chip
Drive IC MBI5124,high stability and reliable long working hours
Driving Voltage 5V
Viewing Angle H:120° w:120°
Operating Temperature ’-20~60°
Input Voltage AC110/220V+15%47-64HZ
IP Rating IP65
Life Time Above 100000hours







P6 Mobile LED Truck Advertising 27777 Dots / Sqm Lightweight 0P6 Mobile LED Truck Advertising 27777 Dots / Sqm Lightweight 1





Our advantages

1.The Meanwell brand certified by UL, Rohs, CE :

1. Considered 1st rate in power supply field while some other suppliers only provide Rong Electronic, the G-energy or even worse

2. More stable power output , longer life span

3. protection mechanism against short circuit

4. overload over temperature and over voltage



2. Drive IC-MBI5124

1. Has better performance in eliminating ghost images and makes the screens very clearer , purer



3. Lamp2525 better than 2727 for outdoor use

1.Kinglight high contrast SMD2525 led lamp is best for P6.

2.SMD2525 has more vivid color than the SMD2727, the image is more delicate and realistic.

3.SMD2525 cup body is shorter, better heat dissipation, light angle is greater.



Smd Mobile Truck LED Display Advertising Full Color Rgb P6 27777 Dots / Sqm Pixel 0



4.PCB design and thickness

Sunrise: unique design PCB with larger LED lamp touch area, enable the LED lamp to be held onto PCB firmly even with strong vibration.

Competitors: very normal PCB, which can not assure the LED lamp to be held firmly. After a little longer vibration on truck, part of the led lamps will get loose



Sunrise: 1.6mm thickness PCB with copper melt well. Stable data and circuit transmission all the time.

Competitors: 1.2mm thickness PCB. It is easy to get circuit or data to be cut off when the LED billboard lights up for a longer time.



5. Data connector

Sunrise: Butterfly connector with anti-loose design;

Competitors: C type connector without anti-loose design;





Special designs:



1: Electric leakage protection design with wooden floor Non-slip design



1.Led truck screen with anti-vibration, butterfly connector is more anti-vibration,

2.more stable current contact,less info loss,

3.more stable transmission function. Suitable for led screen truck.



1. Reliable design: connect coterminous led cabinet by connecting plate and locating pin.



1. the protection level can reach up to IP65 ,and applicable to any rainy weather ,thus can used in any outdoor environment.



1. Wider viewing angle: Horizontal≥120º;Vertical≥120º,can attract more audiences'eye, very good for outdoor advertising.


Company profile
Shenzhen X-Media Electronic Co.,Ltd established in 2008  and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
P6 Mobile LED Truck Advertising 27777 Dots / Sqm Lightweight 3

Certificate
Smd Mobile Truck LED Display Advertising Full Color Rgb P6 27777 Dots / Sqm Pixel 2

Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Smd Mobile Truck LED Display Advertising Full Color Rgb P6 27777 Dots / Sqm Pixel 3
