Product Details:
|
| Product Name: | Rental LED Display | Cabinet Material: | Aluminum |
|---|---|---|---|
| Module Size: | 320mmx160mm | Screen Dimension: | Customized Size |
| Brightness: | 5000cd | Warranty: | 5 Years |
| Life Span: | 100,000hours | MTBF: | 10000H |
| High Light: | 192x192 Dots Rental LED Display,P5mm Rental LED Display,960x960mm outdoor led screen rental |
||

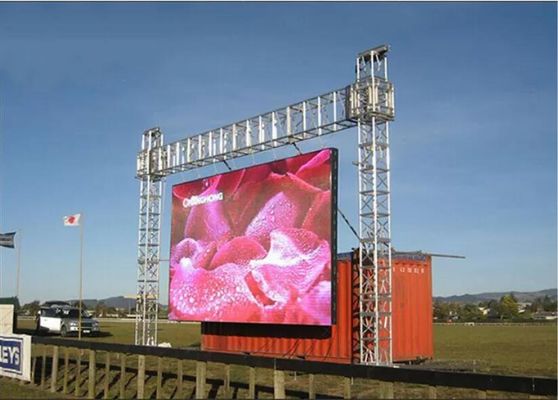

P5 Rental Outdoor LED Display 960x960mm Cabinet 192x192 Dots Resolution
-With various real-time signal sources and the SMD encapsulation technology, its purpose is to playthe important news or events or TV program and more
-Super-thin and light cabinet can save room and time of installation
-High and adjustable brightness can meet the demands of the changing requirement of customer in different environments
-No mosaic due to excellent flatness and nice uniformity of light-emitting
-Wide viewing angle and the horizontal angle can reach 120° the images effect will not change largely in the range
-Single-lamp maintenance with low cost
-Good heat dissipation capability because of the unique design of vent fan
-Environment-friendly and energy-saving
1,High brightness /refresh rate
2,Vivid and colorful display
3,Impact resistant,adapt to kinds of weather
4,Quick response
5,Energy-saving, high luminance, environment-friendly
6,Low deficiency rate and low cost
7,Support various interfaces and signal sources, support multi-transmission methods, network control and automatic brightness control
P5 indoor LED displayAdvantage:
1, ISO9001, CE, RoHs
2, Stable and short delivery time
3, High quality with competitive price
4, 5year warranty and good after-sale service
5, Strong quality control and R&D ability
6, Performance advantage
Specification
| Pixel pitch | P5 | ||
| Module Parameters | Pixel pitch | 5mm | |
| Pixel Density | 40000pixels/m2 | ||
| LED Shape | SMD 3 in 1 | ||
| LED Configuration | 1R1G1B | ||
| Module Resolution | 64*32pixel | ||
| Module Size | 320mm*160mm | ||
| Drive Method | 1/8 | ||
| Cabinet Parameters | Cabinet Resoltuion | 192*192 | |
| Cabinet Size | 960mm*960 mm | ||
| Cabinet Weight | 36kg/m2 | ||
| Display Parameters | Optical | Brightness | ≥5000cd/m2 |
| Viewing angle | H/V 160/160 | ||
| Best Viewing Distance | 3-100m | ||
| Display Color | 16.7 million | ||
| Grey Scale | 10bits/1024levels | ||
| Power | Max power consumption | 1000 W/m2 | |
| Ave power consumption | 500 W/m2 | ||
| Working Voltage | 220V / 110V | ||
| Control system | Frame Frequency | 60--85 HZ | |
| Refresh Rate | ≥1920HZ | ||
| Data Transmission | CAT 5/ Optic Fiber | ||
| Image Source | S-Video, PAL/ NTSC | ||
| Controlling system | linsn, Nova, Mooncell, ZD, Xixun, Lumen, Dbstar |
||
| Format | Video Compatibility DVI, VGA, composite | ||
| Reliability | Working Temperature | -20~65 ℃ | |
| Working Humidity | 10-90%RH | ||
| Life Span | 100,000 Hours | ||
| MTBF (Ave No Faliure Time) | 5000 Hours | ||
| Pixel failing Rate | 0.01% | ||
| IP Rate | IP 65 | ||
Buying Guides
In order to offer you a suitable solution, please follow the guides bellowing :
1,Dimension (Width and Height)
2,Location of installation. (picture is best)
3,Purpose. ( rental or use by youself)
4,Star effect or video effect which you need.
company profile
Shenzhen X-Media Electronic Co.,Ltd established in 2008and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
