Product Details:
|
| Product Name: | Stadium Perimeter Led Display | Cabinet Material: | Aluminum |
|---|---|---|---|
| Module Size: | 320x160mm | Screen Size: | Customized Design |
| Brightness: | 7000cd | Warranty: | 5 Years |
| Life Time: | 100,000H | MTBF: | 10,000H |
| High Light: | Pitch 8mm Stadium Perimeter LED Display,15625 Dots/Sqm Stadium Perimeter LED Display |
||

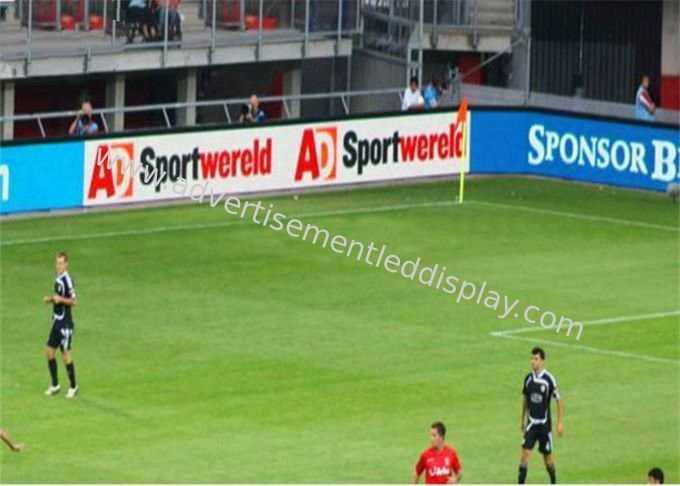

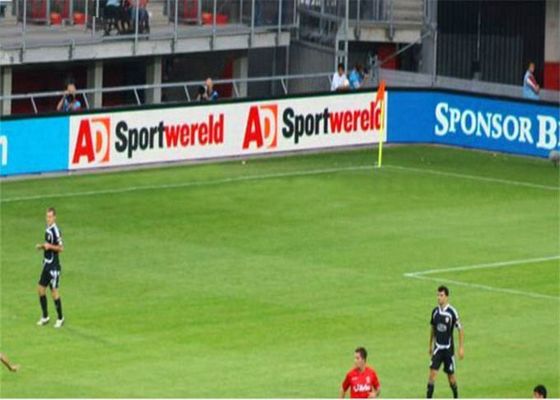

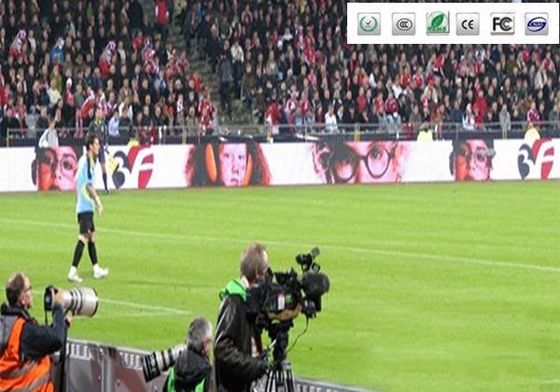

600W/Sq.M 6500cd/Sq.M Football P8 Stadium Perimeter LED Display FCC CE Approval

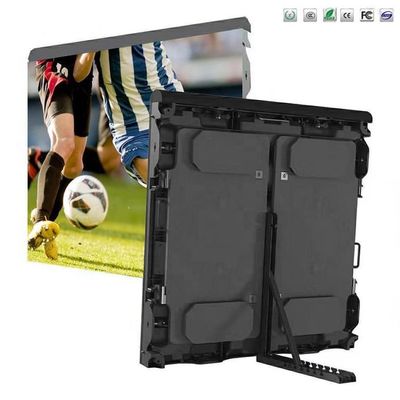

Support Customized steel support, the quality is very good.
There are over 15 holes, you can make the support at any hole to set suitable height for your project. Rubber hat
There are rubber hat at the top of cabinet, over 5cm customized, it can effectively prevent hit of basketball or soccer.
Soft module mask
We make private mode base on P10 LED display to production soft module mask, it can protect the led display avoid hit better.
Parameter specification
| model | P8 | P10 | |
| Pixel unit module | Pixel pitch(mm) | 8 | 10 |
| Pixel density (dots/sqm) | 15625 | 10000 | |
| LED type | SMD | SMD | |
| Module size(mm) | W320xH160 | W320×H160 | |
| Pixel composing | RGB full color | RGB full color | |
| Pixel unit screen | screen size(mm) | 960*960mm | 960*960mm |
| module Resolution (nits) | 32*16 | 32*16 | |
| Cabinet structure | Water-proof | Water-proof | |
| screen material | Ironed steel cabinet | Ironed steel cabinet | |
| Protect degree | IP65 front ,IP54 rear | IP65 front ,IP54 rear | |
| Viewing distance(m) | 8-100m | 10~100m | |
| Brightness(cd/sqm) | ≥6000 cd/sqm | ≥6000 cd/sqm | |
| Power consumption (w/sqm) | Max 850W/sqm ,Min 280W/sqm | Max 600W/sqm ,Min 200W/sqm | |
| Driving IC | 1/4 scan MBI Brand Driver | 1/4 scan MBI Brand Driver | |
| Refresh rate(HZ) | ≥960-2000 | ≥960-2000 | |
| Viewing angel(c) | H120 V120 | H120 V120 | |
| Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc | |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc | ||
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9 | ||
| Gray | 65536 | ||
| Color temperature/contrast | Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need | ||
| Transmitting Distance | The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | ||
| Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | ||
| Control System | PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer | ||
| Average No Failure Time | 20000 hours | 20000 hours | |
| Life span | 100,000 hours | 100,000 hours | |
| Out-of Control rate | 0.0001 | 0.0001 | |
| To floor drain current | Less than 3.5MA | Less than 3.5MA | |
| Control system | Synchronized | Synchronized | |
| Operating Environment Temperature | -20°C—65°C Optional | -20°C—65°C Optional | |
Buying Guides
In order to offer you a suitable solution, please follow the guides bellowing:
1, Star effect or video effect which you need.
2, Dimension ( Width and Height)
3, Location of installation. ( picture is best)
4, Purpose. (what are you going to do with the LED Curtain)
After-Sale Service
1. Five year warranty, Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company profile
FAQ
Q1. How can I place the order?
Firstly, please provide the details of your requirements as clear as possible, so we can send you the offer at the first time. For custom design, it is better to contact us with Whatsapp / email / phone for accurate offer.
Q2. What if I don't know how to install the screen?
a. We provide the technology training for free, which contains the operation training and maintenance.
b. Training 2 people in the factory.
c. We can send our engineers to your country to guide how to install the screen.
Q3. What if I don't know how to maintain the screen?
We will provide you the operation manual, software, test report when you place the order and also we can remote to help you to adjust the software, everything when issues come up.
Q4. How to deliver the my goods?
It denpens on your budget and time you need the led screen. Regularly, if the quantity is less, we guggest to deliver by air, otherwise by sea to save the costs
Q5. I want a good price.
Ok, no problem, please contact us. The good price can be provided based on communication.
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea, air or DHL, multiple shipping ways for your choice.
Shenzhen X-Media has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
