P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

Large Image : P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

Product Details:

Place of Origin:	China,Shenzhen
Brand Name:	X-media
Certification:	CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Model Number:	P25

Payment & Shipping Terms:

Minimum Order Quantity:	5sq.m
Price:	Negotiation
Packaging Details:	Flight case, wooden case and carton box and foam package
Delivery Time:	8~10 working days
Payment Terms:	T/T, MoneyGram,Cash
Supply Ability:	5,000sq.m/month

Contact Now

P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF

Description

Product Name:	LED Curtain Screen	Cabinet Material:	Aluminum
Module Size:	1000X500mm	Screen Size:	Customized Design
Brightness:	7000cd/sqm	Warranty:	5 Years
Life Time:	100,000H	MTBF:	10,000H
High Light:	P25 Outdoor LED Curtain , 7000cd/Sqm LED Mesh Screen , 7000cd/Sqm Outdoor LED Curtain

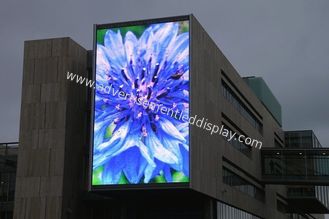

The Surface Of Building Facade P25 Outdoor Led Curtain Screen

Never black Screen

2pcs power supply

2pcs receing cards

2pcs sending cards

2pcs RJ45 network cables.

Control system has dual backup.

If one set of control system has problems. The whole led screen can not be affected.

Because other one set of control system will replace it to continue work.

Specification

Led	DIP346
Horizontal Spacing	15.625mm	25mm	25mm	31.25mm	31.25mm	50mm
Vertical Spacing	15.625mm	15.625mm	25mm	15.625mm	31.25mm	25mm
Resolution	4096dots/m2	2560dots/m2	1600dots/m2	2048dots/m2	1024dots/m2	800dots/m2
Gray Scale	16 bit
Brightness	8500nits	8000nits	7500nits	7500nits	7000nits	7000nits
Best Viewing Distance	15-300m	20-400m	25-500m	30-500m	30-600m	40-700m
Max Power Consumption	400w/m2
Average Power Consumption	140w/m2
Weight	18kg/m2	16kg/m2	12kg/m2	11kg/m2	10kg/m2	8kg/m2
Thickness	6cm
Protection Level	IP65
Display Mode	1920*1080

X-Media series Media Facade New dual backp design led screen

P25 Outdoor LED Curtain , LED Mesh Screen 7000cd/Sqm 10000H MTBF 3

Outdoor Mesh Led Display:

High protection of cabinet design with flexible shape.

Super light, super thin, super high transparency,high intensity item and easy maintenance

Light weight, extremely thin and high transparent cabinet:

Whole aluminum frame design, 70mm thickness, 16kg/sqm strip design, light and wind transparency, 60% extremely high wind pressure resistance

Higher 7000cd/sqm brightness

Fast installatin and easy front service

Ingress Protection IP65 Dustproof and Stormproof

High protections of high temperature, low temperature, lightning and corresion

Product package:

1pcs 1000x1000mm cabinet in one carton.

10pcs cartons in one wooden case.

10pcs frames in one wooden case.

Wooden case material is not wood, it does not need to be fumigated.

So it is very suitable used in import and export

FAQ

Q1: What does the dual backup means?

A1: The dual backup means if one set of control system can not work. Then other set of control can replace it to continue work. It will not affect whole led screen working situation.

Q2: Can its brightness can be higher?

A2: Yes. Of course, here is a solution to make the whole brightness to be 10000nits.

Q3: How long for the warranty? Can the warranty be longer?

A3: On usual, warranty is 5 years. Of course,according to customers' requirements, the warranty can be longer such as 5 years.

Q4: Except the whole screen and its accessories, what I need to prepare by myself?

A4: Power box, computer, external power cable, external network cable.

Q5: Can this transparent led screen has energy saving advantage?

A5: Yes. Of course, the energy saving is one of its important advantage. It can save a lots of power. In some degree, it can also save a lots of costs in electricity
