Product Details:
|
| Product Name: | External Led Screen | Cabinet Material: | Iron |
|---|---|---|---|
| Module Size: | 192x192mm | Screen Size: | Customized Design |
| Brightness: | 6000cd | Warranty: | 5 Years |
| Life Time: | 100,000H | MTBF: | 10,000H |
| High Light: | IP65 Iron Advertisement LED Display,Advertisement LED Display 6000cd,192x192mm External LED Screen |
||
IP65 Iron External Led Screen With Module Size 192x192mm High Brightness
Our advantage:
1) Manufacturer with over 12 years experience in electronic goods & PCB assembly.
2) over 400 employees.
3) 8 high-speed Panasonic SMT machine, 6 Yamaha SMT machine, 2 AOI testing equipment, etc.
4) 10 production lines.
5) 6S management.
6) Passed ISO9001:2008 & ISO14001:2004 and CE/RoHS/FCC certified

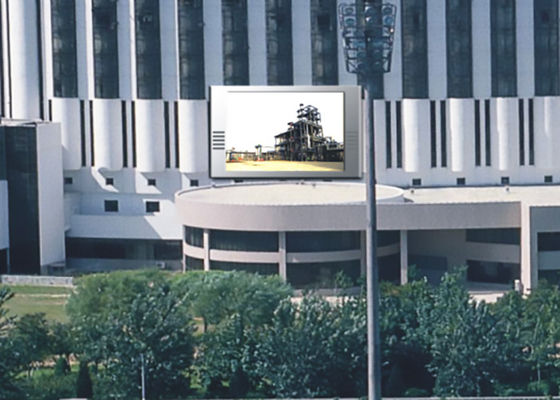

Widely Application for shopping mall, large building glass wall, stage background led display, casino, carnival, concert, exhibition, chain shops and clothes shop, even in Bank window, etc. It is installed inside but with very high brightness for outside.
What We Do:
We offer you a possibility to run commercials on our screens which are unique advertising media that combine the advantages of outdoor and TV advertising. This kind of advertising is extremely important if you want to create and support one's company image or a product for the sales encouragement. There are many sizes for selection: outdoor, indoor display screens, semi outdoor screens. And also there are full color, dual color and single color for your selection. Customer's design size is acceptable.
Specifications:
| outdoor SMD P6 | |||||
| Resolution/mm | 6 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 27777/m² | ||||
| Module resolution | 32x32 | ||||
| Module size/mm | 192x192mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >6000cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 160(degrees) | ||||
| Vertical view angle | 160(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >1920Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >10000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Our service
1. We guarantee all our display, modules, spare parts for 5 years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3. After warranty, we also can offer you the parts for replacement at our bottom price.
4. After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5. We also could solve problems for you antil it recovers well by remote control!
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 5 years
6. Delivery time: 8-10 working days
We are a Chinese LED display screen manufacturer.Some of our primary products are sports stadium LED display, square LED screen, giant LED video wall, airport LED display panel, advertising LED billboard, Mobile led rental display, Stage LED display board, wall large LED display, exhibitions,shopping malls, and more. As a result, our outdoor and indoor LED display are favored by customers in many countries,
Such as: UK, Italy, Germany, USA, Spain, Singapore, Brazil, and so on. Please contact us for more detailes information on our LED display screens, we can meet the international demand for our high quality indoor led display, outdoor led display,rental led display, and creative led display. We look forward to hearing from you!
FAQ:
|
Q1: What's the warranty of your LED Display Screen ? A1: We have a 5-year warranty for our led display screen, and 100,000 hours life span of the led lamps. |
|
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
|
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
|
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. |
|
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
Buy guides:
In order to save you time avoid no necessary troubles ,please follow the steps bellowing :
1. Dimension (Width and Height)
2. Location of installation. (picture is best)
3. Purpose. ( what are you going to do with the LED Curtain)
4. Star effect or video effect which you need.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
