|Product Name:||Advertising Screen Display||Custom:||OEM/ODM|
|Module Size:||192x192mm||Type:||LED Billboard Advertising|
|Screen Dimension:||Customized Design||Warranty:||5 Years|
Lightweight Advertising Screen Display,
CB Advertising Screen Display,
IP54 LED Advertising Billboard

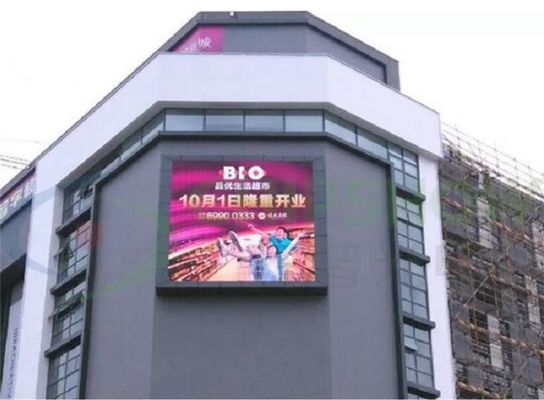

Lightweight Advertising Screen Display / IP54 LED Billboard Advertising
|1. Item Name||Lightweight Advertising Screen Display / IP54 LED Billboard Advertising|
|2. pixel tube:||
pixel pitch:6mm; primary colors: pure red+ pure green +pure blue;
color composing:3 in 1 or 1R1G1B
Density 62500dots/sq m; SMD3528
|3. unit box||
module size:192mm×196mm; Module resolution:32*32
cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;
|4. whole screen:||
the optimum viewing angel :horizontal 110°, vertical 50°
viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC MBI5024
|5. operating voltage||
AC220V±10% or 110V±10% ,average consumption:500 W/sq m
max consumption:≤650 W/ sq m.
|6. main parameter||
1) driving mode: 1/8 scan
2) refreshing rate:≥400Hz/s
3) frame frequency:≥60Hz/s
4) gray scale/color:≥16.7Mcolors(Synchronized)
5) manage gray:≥72bit
6) brightness:≥7000cd/sq m
7) color temperature condition:3500K~9500K,be adjustable
8) adjusting style of brightness: hand movement/auto
9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
10) average trouble-free time:≥5000hours
11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
12) switch power loading:5V/40A
13) display mode of computer:1024×768
Applications of LED display
|Business Organizations||Supermarket, large-scale shopping malls, star-rated hotels, travel agencies|
|Financial Organizations||Banks, insurance companies, post offices, hospital, schools|
|Public Places||Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms|
|Entertainments||Movie theaters, clubs, stages|
LED display Specification
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Humanized operating interface with breakdown indicator lights, easy to maintain.
4. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Xmedia Product List:
Indoor LED Module & Screen : P2.5 / P3 / P3.076 / P3.91 / P4 / P4.81 / P5 / P6 / P7.62
Outdoor LED Module & Screen : P3:/ P3.91 / P4 / P4.81 / P5 / P5.93 / P6 / P6.67 / P8 / P10
Fine-Pitch Series Screen : P1.25 / P1.47 / P1.5 / P1.562 / P1.579 / P1.667 / P1.875 / P1.923 / P2
Soft Module & Screen: P1.8/ P2/ P2.5/ P3/ P4
1. OEM Manufacturing welcome
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality.We will give for free after you place an order.
Q2. What about the lead time?
A:Sample needs 8-10 days, mass production time needs 8~10 days for order quantity more than
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the goods and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on leddisplay product?
A: Yes. Please inform us formally before our production and confirm the design with you.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Package and shippment
we can receive all kinds of transportation. and the shippment term. FOB and CIF, EXW and so on.
we can choose the best shippment which is convenient to you !
X-Media group can give you the short delivery time and With the large production ability ,
you can feel free about this, By air, by train, by sea?
