Product Details:
|
| Product Name: | Indoor Full Color Advertising LED Display | Module Size: | 192mmX192mm |
|---|---|---|---|
| Screen Dimension: | Customized Design | Warranty: | 5 Years |
| Life Span: | 100,000H | MTBF: | 10000H |
| High Light: | Immersive Advertising LED Display,High-Resolution Advertising LED Display,Dynamic Content Playback Advertising LED Display |
||
Led Curtain Display Interactive Digital Signage Indoor Led Video Wall P3 Led Display Panels
♦ Product specification
| indoor SMD P3 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 3mm | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 111111/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 192*192 | |||||||||||||
| View distance | ≥3m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >1500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/32 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >1600Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
♦ Description

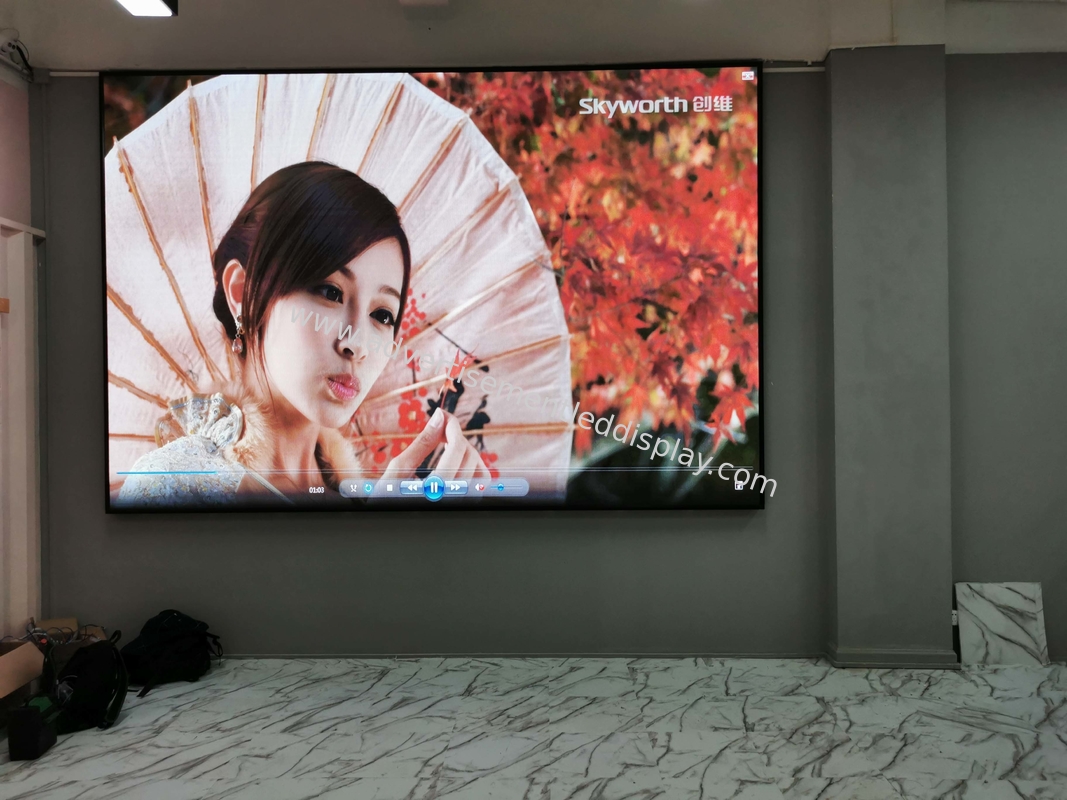

Our Indoor Advertising LED Display offers unparalleled clarity with ultra-high definition resolution, ensuring that every message, image, or video is displayed with stunning crispness and detail. Whether you're showcasing products, promoting services, or broadcasting advertisements, our LED display brings your content to life with unmatched visual fidelity.
♦ Applications
♦ Our advantages
Customization Without Limits: Benefit from OEM service with no minimum order quantity (MOQ), allowing you to tailor the LED display to your exact specifications and branding requirements.
Convenience in Installation: Enjoy easy installation with regularly stocked items, ensuring quick setup and minimal downtime for your advertising campaigns.
Versatile Applications: Explore a wide range of applications for Indoor Advertising LED Displays, including retail stores, corporate offices, event venues, and more, thanks to their versatility and adaptability.
Enhanced Brand Visibility: Increase brand visibility and attract attention with high-quality LED displays that deliver vibrant visuals and eye-catching content, helping you stand out in crowded indoor environments and leave a lasting impression on your audience.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
