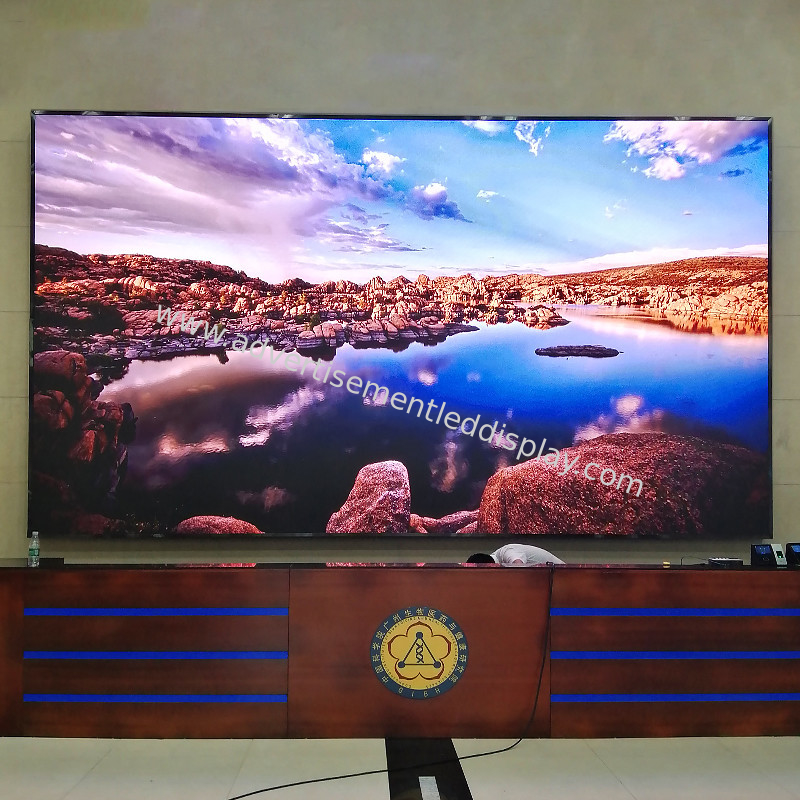

Product Details:
|
Product Name: | Indoor LED Display | Cabinet Material: | Iron/Die-casting Aluminum |
---|---|---|---|
Screen Dimension: | 320mmx160mm | Warranty: | 5 Years |
Life Span: | 100,000H | Brightness: | >1500cd |
Highlight: | Broadcasting Studios Indoor LED Display,Media Production Indoor LED Display |
Led Curtain Display Interactive Digital Signage Indoor Led Video Wall P3 Led Display Panels
♦ Product specification
Indoor SMD P5 Full Color LED Display | |||||
Resolution/mm | 5mm | ||||
Pixel configuration | 1R1G1B | ||||
Pixel density/pixels/m² | 40000/square meter | ||||
Module resolution | 64x32 | ||||
Module size/mm | 320x160mm | ||||
View distance | 14-300m | ||||
Single point brightness adjust | Can be added | ||||
Single point color adjust | Can be added | ||||
White balance brightness | >1500cd/square meter | ||||
Color temperature | 6500K-9500K | ||||
Horizontal view angle | 120(degrees) | ||||
Vertical view angle | 60(degrees) | ||||
Signal Process bit | 10 or 16bit | ||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
Driving mode | Constant driving current | ||||
Scanning mode | 1/8 SCANNING | ||||
Frame rate | 60Hz | ||||
Refresh frequency | >3000Hz | ||||
Control mode | Computer synchronous | ||||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
255 steps. No grey loss | |||||
Out of control point | <1/10000 | ||||
Working hours | ≥72hours | ||||
Mean Time Between Failure | >5000hours | ||||
Life time | 100000hours | ||||
Life-all-white(brightness halving) | 50000hours | ||||
Environment temperature range | Operating temperature range: -20-45℃ | ||||
Self-check technology | LED spot self-check, communications check, power check, | ||||
temperature monitor(need customization) | |||||
Remote monitoring | Remote supervision and control, record potential fault, | ||||
send out warning signs to the operators.(need customization) | |||||
Software environment | WindowsNT,Windows1999,WindowsXP | ||||
Luminous point width between centres | Deviation<3% | ||||
Brightness uniformity | <10% | ||||
Color uniformity(chromaticity coordinate) | ±0.003 | ||||
Power supply request | AC85-264V(50Hz-60Hz) | ||||
Contrast | (1000:1) | ||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
Humidity(working) | working:10-95% | ||||
Humidity(storing) | storing:10-95% |
♦ Description
Safety is a priority for indoor full-color LED displays, especially in public spaces and high-traffic environments. Some versions are designed with safety features and compliance with industry standards to ensure the well-being of users and installers. These safety features include fire-resistant materials, secure mounting systems, and protective enclosures, reducing the risk of accidents and ensuring compliance with safety regulations. Displays with safety features and compliance are ideal for public events, corporate installations, and educational institutions, providing peace of mind and a secure environment for users.
♦ Applications
♦ Our advantages
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
