8000cd Car Top LED Sign , Taxi Sign For Car Roof 960x320mm

8000cd Car Top LED Sign , Taxi Sign For Car Roof 960x320mm

    • 8000cd Car Top LED Sign , Taxi Sign For Car Roof 960x320mm
    • 8000cd Car Top LED Sign , Taxi Sign For Car Roof 960x320mm
    • 8000cd Car Top LED Sign , Taxi Sign For Car Roof 960x320mm
  • 8000cd Car Top LED Sign , Taxi Sign For Car Roof 960x320mm

    Product Details:

    Place of Origin: China,Shenzhen
    Brand Name: X-media
    Certification: CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
    Model Number: P5mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 5sq.m
    Price: Negotiation
    Packaging Details: Flight case, wooden case and carton box and foam package
    Delivery Time: 8~10 working days
    Payment Terms: T/T, Western Union, MoneyGram,Cash
    Supply Ability: 5,000sq.m/month
    Contact Now
    Detailed Product Description
    Product Name: Car Top LED Sign Display Cabinet Material: Aluminum
    Module Size: 160x160mm Screen Size: 960x320mm
    Brightness: 8000cd Warranty: 5 Years
    Life Time: 100,000H MTBF: 10,000H
    High Light:

    8000cd Car Top LED Sign

    ,

    960x320mm Car Top LED Sign

    ,

    8000cd Taxi Sign For Car Roof

    P5 Outdoor Double Side Car Top Led Sign Display Waterproof Led Message Sign Board





    Application:

    Features of Taxi car Top P4 P5 P6 LED Digital Display Full Color 3G WIFI GPS Outdoor Taxi Top Moving Advertising is widely used to shopping mall, cinema, bars, banks, luxury goods stores, airport, exhibition hall, conference room, hospitals, squares, concoures etc


    Product Descriptions:
    1. Our LED video display systems deliver crisp, high-contrast video to showcase products or messages for any application.

    2. Provide the ability to change content quickly and dramatically. This product line includes full-color LED video screens in a variety of resolutions, sizes, and viewing angles.

    3. From 1.667 mm to 48 mm, we offer a wide variety of pitch and resolution options.

    4. The panel design offers significant flexibility in size, curves, and custom corners.

    5. Deliver messages with a high degree of clarity, acuity, and impact. With a wide range of input options and fully customized controls, the user can create a unique mix of programming.

    6.The industry-leading contrast ratio and brightness features allow the content to stand out regardless of surrounding light conditions.



    ♦ Led lamps type for your choice

    (1) Use SMD3528 LED lamps, screen brightness over 4000nits, normal brightness & Good cost & hot selling

    (2) Use SMD3535 LED lamps, high brightness over 5500nits



    ♦ Feature

    1. High reliability. 24h/7day advertising all the time and all weather conditions.



    2. Low power consumption. 12V DC input. Vehicle battery is enough to make the taxi top LED sign work.



    3. High brightness. Using P5 SMD LED display module, luminance reach 4300nit plus. Our taxi top LED sign can be seen very clearly in the sunlight.



    4. High resolution. Compared to the traditional taxi roof screen, screen resolution of ours reaches to 192px64p.



    5. It can play a variety of media resources such as text, photos, animation, video and so on.



    6. The controlling and editing has never been as easy as now. Through 3G or 4G network, no matter where you are, as long as your device can access

    the Internet and open your browser, you can easily control the taxi top LED sign.



    7. With GPS modules, the car can be tracked and located.



    8. High quality acrylic cover keep the surface of the taxi top LED sign always clean.





    ♦ Product specification


    Lamp size 2727
    Resolution/mm 5
    Pixel configuration RGB 3 in 1
    Pixel density/pixels/m² 40000/m²
    Module resolution 32*32
    Module size/mm 160*160MM
    View distance ≥4m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >8000cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 160(degrees)
    Vertical view angle 160(degrees)
    Signal Process bit 10 or 14 bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
    Driving mode Constant driving current
    Scanning mode constant driving static
    Frame rate 60Hz
    Refresh frequency >3840Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >10000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡ <800W
    Average power:/㎡ <300W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%

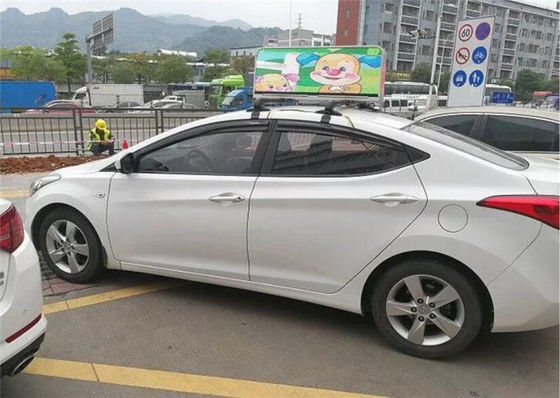

    How install car top led sign display

    8000cd Car Top LED Sign , Taxi Sign For Car Roof 960x320mm 08000cd Car Top LED Sign , Taxi Sign For Car Roof 960x320mm 18000cd Car Top LED Sign , Taxi Sign For Car Roof 960x320mm 2
