Product Details:
|
| Product Name: | Car Top LED Sign Display | Cabinet Material: | Aluminum |
|---|---|---|---|
| Module Size: | 160x160mm | Screen Size: | 960x320mm |
| Brightness: | 8000cd | Warranty: | 5 Years |
| Life Time: | 100,000H | MTBF: | 10,000H |
| High Light: | 8000cd Car Top LED Sign,960x320mm Car Top LED Sign,8000cd Taxi Sign For Car Roof |
||

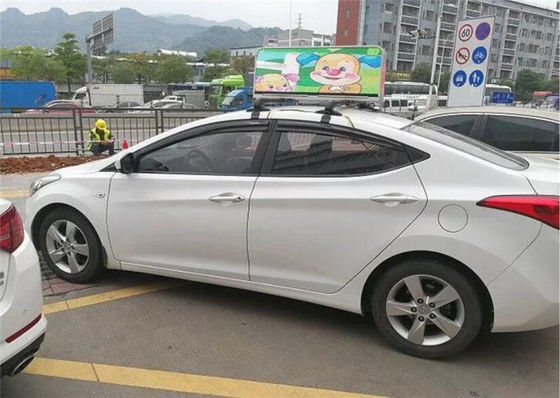

P5 Outdoor Double Side Car Top Led Sign Display Waterproof Led Message Sign Board
Features of Taxi car Top P4 P5 P6 LED Digital Display Full Color 3G WIFI GPS Outdoor Taxi Top Moving Advertising is widely used to shopping mall, cinema, bars, banks, luxury goods stores, airport, exhibition hall, conference room, hospitals, squares, concoures etc
2. Provide the ability to change content quickly and dramatically. This product line includes full-color LED video screens in a variety of resolutions, sizes, and viewing angles.
3. From 1.667 mm to 48 mm, we offer a wide variety of pitch and resolution options.
4. The panel design offers significant flexibility in size, curves, and custom corners.
5. Deliver messages with a high degree of clarity, acuity, and impact. With a wide range of input options and fully customized controls, the user can create a unique mix of programming.
6.The industry-leading contrast ratio and brightness features allow the content to stand out regardless of surrounding light conditions.
♦ Led lamps type for your choice
(1) Use SMD3528 LED lamps, screen brightness over 4000nits, normal brightness & Good cost & hot selling
(2) Use SMD3535 LED lamps, high brightness over 5500nits
♦ Feature
1. High reliability. 24h/7day advertising all the time and all weather conditions.
2. Low power consumption. 12V DC input. Vehicle battery is enough to make the taxi top LED sign work.
3. High brightness. Using P5 SMD LED display module, luminance reach 4300nit plus. Our taxi top LED sign can be seen very clearly in the sunlight.
4. High resolution. Compared to the traditional taxi roof screen, screen resolution of ours reaches to 192px64p.
5. It can play a variety of media resources such as text, photos, animation, video and so on.
6. The controlling and editing has never been as easy as now. Through 3G or 4G network, no matter where you are, as long as your device can access
the Internet and open your browser, you can easily control the taxi top LED sign.
7. With GPS modules, the car can be tracked and located.
8. High quality acrylic cover keep the surface of the taxi top LED sign always clean.
♦ Product specification
| Lamp size | 2727 | |||||||||||||
| Resolution/mm | 5 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 40000/m² | |||||||||||||
| Module resolution | 32*32 | |||||||||||||
| Module size/mm | 160*160MM | |||||||||||||
| View distance | ≥4m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 160(degrees) | |||||||||||||
| Vertical view angle | 160(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | constant driving static | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3840Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >10000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <800W | |||||||||||||
| Average power:/㎡ | <300W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
How install car top led sign display
Our services
Before sales:
According to your demands, we will provide a set of LED display
project solutions for your choices.
In sales:
We will offer installaiton steps and guidance based on the
detailed installation environment including temp, humidity, installation venue, etc.
If it is a big event, we can send our engineer to your country
to stay there with you to ensure everything goes well.
Romote control will help us build communications and debug the control software for you no matter where you are.
After sales:
5 years of free maintenance since the delivery of LED display,
we will provide free technology support through phone and email in time.
Delivery and shipping
We have wooden boxes, flight cases and carton are available.
Shipping by sea, air, or DHL multible ways for your choices.
