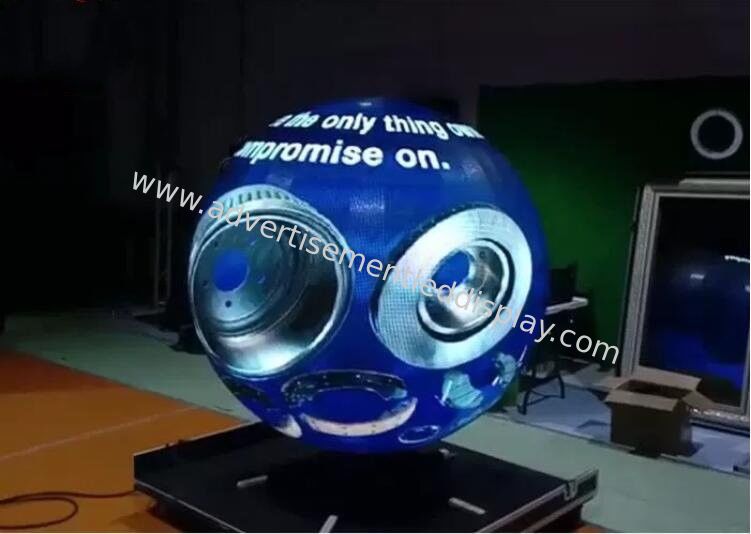

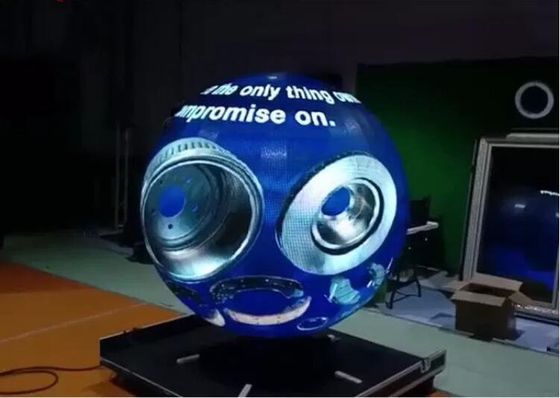

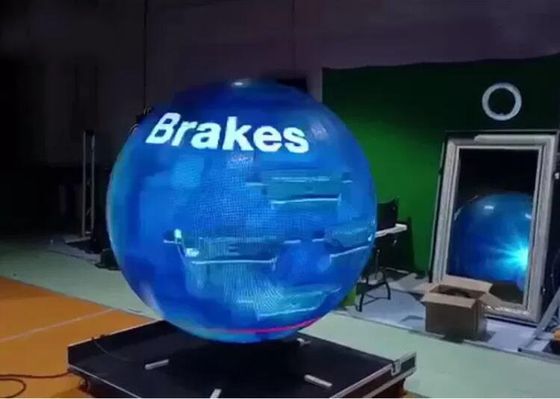

Indoor P4 Sphere Led Display 160 Degrees View Angle 1/16 Scan

Indoor P4 Sphere Led Display 160 Degrees View Angle 1/16 Scan
Indoor P4 Sphere Led Display 160 Degrees View Angle 1/16 Scan Indoor P4 Sphere Led Display 160 Degrees View Angle 1/16 Scan Indoor P4 Sphere Led Display 160 Degrees View Angle 1/16 Scan

Large Image :  Indoor P4 Sphere Led Display 160 Degrees View Angle 1/16 Scan

Product Details:
Place of Origin: China,Shenzhen
Brand Name: X-media
Certification: CE, RoHS, FCC, CCC,SASO
Model Number: P4 ball LED display
Payment & Shipping Terms:
Minimum Order Quantity: 5sq.m
Price: Negotiation
Packaging Details: Flight case, wooden case and carton box and foam package
Delivery Time: 8~10 working days
Payment Terms: T/T, MoneyGram,Cash
Supply Ability: 5,000sq.m/month

Indoor P4 Sphere Led Display 160 Degrees View Angle 1/16 Scan

Product Name: Special Led Display Cabinet Material: Iron
Module Size: Triangle Module Screen Size: Customized Design
Brightness: 2100cd Warranty: 5 Years
Life Time: 100,000H MTBF: 10,000H
High Light:

P4 Sphere Led Display


1/16 Scan Sphere Led Display

Indoor P4 Ball Special LED Display 5 Years Warranty for Exhibition And Party



Welcome to Shenzhen X-Media Co.,Ltd.we are the most professional provider of outdoor and indoor led displays with 12 years experience, we have the widest business coverage, the most complete product lines, the greatest comprehensive strength in the industry with the perfect global marketing network, our products are sold to The Middle East, South America, North America, Europe, Southeast Asia, Australia, Africa and other regions.


As always do, X-media will continue to spare no efforts in reinforcing its position as a product, technology and market. we always contribute our efforts to help our customers improve visual effect and fulfill its social responsibilities.

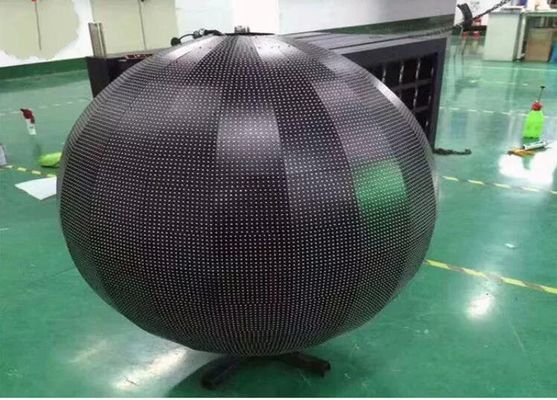

the led ball is made by 5 shapes indoor p4 soft module,1.2m diameter spherical steel structure and mooncell control card.this type point density: 62500dots/sqm.


Resolution/mm 4
Pixel configuration 1R1G1B
Pixel density/pixels/m² 62500/m²
Module resolution 64x32
Module size/mm Triangle module
View distance 4-150m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness 2100 cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 160(degrees)
Vertical view angle 160(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/16 scan)
Frame rate 60Hz
Refresh frequency >3840Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >10000hours
Life time 100000hours
Life-all-white(brightness halving) 100000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <700W
Average power:/㎡ <200W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%


Hd Indoor Ball Sphere LED Screen Full Color 64*32 Dots Resolution Constant Driving 0


The Epistar Led chip. with SMD and DIP Technology


We adopt the epistar led chip from Taiwan, DIP and SMD led display module will be available




The wire or wireless controll system are available ( 3g 4g 5g and wifi controll will be welcome)



Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.


Competitive Advantage:

1. 5 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. On site installation instruction and regular inspection

6, Small order accepted.


Payment and delivery



1) T/T, 30% deposit, 70% before shippment.
2) 100% in advance.



♦ Why choose us:


Continues Quality

With more than 10 years experience in led display producing, equipments are updated regularly. What’s

more, unique standardized and module production ensure our products continuous quality.


Competitive Price

With large scale production capacity and professional production technology, our company have built

effective modular production. We always stick to promote the technical innovation and reduce cost to

benefit customers.


Fast Delivery

Once we promise the delivery date, we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.


Perfect Service

Pre-sales: Your purchasing requirements will be highly valued and we’ll recommend suitable products to


After-sales: We will track the products usage and then constantly perfect our products.



♦ Frequently Asked Questions


What kind of payment terms you can accept ?

We can accept T/T and .


What about your Led Display quality ?

Checking in the whole manufacturing process & 100% inspection before shipment ensure the quality of

our products continuity.


What is your delivery time ?

Within 8-10 days according to your area and quantity.


Is your LED display competitive ?

Yes,we are led display manufacturer for more than 12 years, mass and professional production ensure

our led display’s competitiveness.


Hd Indoor Ball Sphere LED Screen Full Color 64*32 Dots Resolution Constant Driving 4

Hd Indoor Ball Sphere LED Screen Full Color 64*32 Dots Resolution Constant Driving 5


Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing:
1, Dimension ( Width and Height)
2, Location of installation ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
