Product Details:
|
| Product Name: | Special Led Display | Cabinet Material: | Aluminum |
|---|---|---|---|
| Module Size: | 480x320mm | Screen Size: | Customized Design |
| Brightness: | 6000cd | Warranty: | 5 Years |
| Life Time: | 100,000H | MTBF: | 10,000H |
| High Light: | P10 Film Special LED Display,480x320mm Special LED Display,480x320mm Transparent Led Film Display |
||

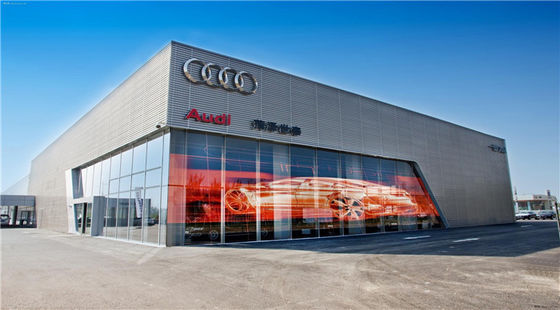

P10 Indoor Film Special Led Display Fixed On Glass For Facade Of Building
Product Description
Transparent LED Film screen is a high-end product that breaks the conventional LED display
Mount components on highly transparent PCB boards using specific bare chips
Through the unique capping process, the display module is integrated into a highly transparent optical lens substrate with a high transparent display with a thickness of only 1~3mm.
Light, thin, transparent, easy to install, and achieve efficient and scalable advertising media
Turning glass into an advertising medium to develop more and more valuable advertising spots
Product features:
Light ( ≤3.5kg / ㎡)
Thin ( 1 ~ 3mm)
Translucent and
transparent Can be cut
and bent High and low brightness can be switched No component on the screen
Product Features, Give you a more perfect product
Specification
| Model | P2.5*5 | P4*8 | P5*10 | P6 | P6.5 | P8 | P10 | P16 |
| Model size(mm) | 480x160 | 480x256 | 480x320 | 480x192 | 481X208 | 480x256 | 480x320 | 480x192 |
| Transparency | 45% | 60% | 68% | 50% | 60% | 60% | 70% | 75% |
| weight(Kg/㎡) | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 |
| Thickness(mm) | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
| Pixel pitch(mm) | 2.5X5 | 4X8 | 5X10 | 6X6 | 6.5X6.5 | 8X8 | 10X10 | 16X16 |
| brightness(cd/㎡) | 3000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 3000 |
| Chromaticity uniformity | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| viewing angle( °) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Refresh rate(Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Average power(w/㎡) | ≤420 | ≤420 | ≤300 | ≤460 | ≤400 | ≤420 | ≤400 | ≤300 |
| Maximum power consumption(w/㎡) | ≤850 | ≤850 | ≤900 | ≤920 | ≤800 | ≤850 | ≤850 | ≤600 |
| Working temperature(℃) | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ |
| Working humidity(RH) | 10%-90% | 10%-90% | 10%-90% | 10%-90% | 10%-90% | 10%-90% | 10%-90% | 10%-90% |
| Driving | Static | Static | Static | Static | Static | Static | Static | Static |
| Control system | colorlight | colorlight | colorlight | colorlight | colorlight | Colorlight | colorlight | colorlight |
Save cost, No need for steel frame structure, no need to change the appearance of the building.
effectively reducing transportation and installation costs
LED Adhesive film Installation way
Show Case
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing, equipments are updated regularly. What’s
more, unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology, our company have built
effective modular production. We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date, we will try our best to fulfill it, special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales: Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales: We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and .
What about your Led Display quality ?
Checking in the whole manufacturing process & 100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 8-10 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 12 years.Mass and professional production ensure
our led display’s competitiveness.
Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing :
1, Dimension ( Width and Height)
2, Location of installation ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
