Product Details:
|
| Product Name: | Taxi Top Special LED Display | Cabinet Material: | Aluminum |
|---|---|---|---|
| Module Size: | 192x96mm | Screen Size: | 768x288mm |
| Brightness: | 8000cd | Warranty: | 5 Years |
| Life Time: | 100,000H | MTBF: | 10,000H |
| High Light: | 192x96mm Taxi Roof LED Display,X media Taxi Roof LED Display |
||

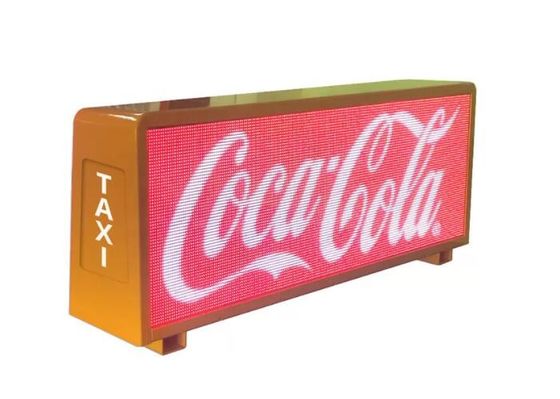

3G 4G 5G SMD2727 P3 Taxi Top Sign Special LED Display Full Color For Car
♦ P3 Car LED sign display technical parameters
| Model Type: | P2.5 | P3.33 | P3 | P5 |
| Pixel Pitch (mm) | 2.5 | 3.33 | 3 | 5 |
| LED Type | SMD 1921 | SMD1921 | SMD1921 | SMD 2727 |
| Pixel Density (dot/m²) | 160,000 | 90,000 | 111,111 | 40000 |
| Module Size (mm) | 160*160 | 320*160 | 192*96 | 160*160 |
| Frame Size (mm) | 1100( L) x 410(H) X W:164(bottom)/99(top) | 1100( L) x 410(H) X W:164(bottom)/99 (top) | 820( L) x 390(H) X W:170(bottom)/ 99 (top) | 1100( L) x 410(H) X W:164(bottom)/ 99 (top) |
| Screen Size (mm) | 960*320 | 960*320 | 768*288 | 960*320 |
| Screen Resolution (dot) | 384*128 | 384*128 | 256*96 | 192*64 |
| Brightness (nit) | >=5000 | >=4500 | >=3500 | >=5500 |
| Scan Mode (s) | 1/32 | 1/24 | 1/32 | 1/8 |
| Power Supply Input | DC9--24V | |||
| Max Consumption (w) | 420 | 420 | 270 | 450 |
| Average Consumption (w) | 130 | 120 | 90 | 150 |
| Driving ICs | ICN2038 | |||
| MTBF | 10,000 Hours | |||
Car top LED display dimension
Car top LED display mode group control way
Carto top LED display installation
♦Our Projects
♦ Packaging and shipping
Wooden case or flight case package are available
Shipping by sea, air or DHL, multiple shipping ways for your choice.
Our Service
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
7) Warranty: 3 years warranty
FAQ
Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing :
1, Dimension ( Width and Height)
2, Location of installation ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
Our team will be forever here to offer you full supports !!!
