Product Details:
|
Product Name: | P19.23 Transparent LED Display | Cabinet Material: | Aluminum |
---|---|---|---|
Module Size: | 500mmx250mm | Screen Dimension: | Customized Size |
Brightness: | 5000cd/sqm | Warranty: | 5 Years |
Life Span: | 100000hours | MTBF: | 10000H |
High Light: | 85 Transparent Glass LED Display,1000x1000mm Transparent Glass LED Display,P19.23 glass advertising LED display screen |

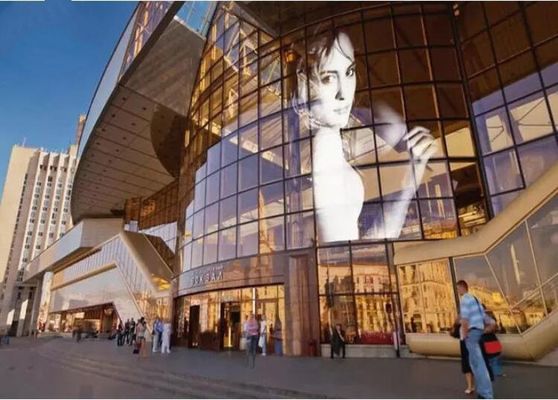

Full Color 1000*1000mm Transparent Led Display, 85% High Transparent LED Screen
Shenzhen X-Media Electronic Co.,Ltd is specialized to the LED lighting products, including indoor and outdoor applications. We are high-tech company, with product developing and manufacturing , project services , market development
We have experienced R&D team, and professional project service team .Focus on technological innovation and matching with market,long-term cooperate with a number of domestic famous universities and research institutes.Based on market application , provides experimental platform and practice opportunity,continue to develop innovative product .
And with the domestic design companies and engineering companies, continue to offer high-quality goods project. We have advanced production equipment and inspection instruments,strict quality standard and efficient management methid . After years of efforts , our product is become to high-end LED products ,they are adapt to the market launch, and reliable application .and reliable application;approved by CE,CCC,ROHS,FC and so on certification.
Parameter
93% high transparent led screen, TL19.23 full color screen with cabinet size 1000*1000mm | ||||||||
LED Module | Pixel Pitch | 19.23mm | ||||||
LED Cabinet | Cabinet Size | 1000mmX1000mm*80mm | ||||||
Cabinet Resolution | 52pixels *52pixels | |||||||
Cabinets Material | Die casting Aluminum Cabinet | |||||||
LED Display | Pixel Density | 2704pixels/sq.m | ||||||
Drive IC | MBI/ICN | |||||||
Power Supply | Series connection | |||||||
Brightness | >5000cd/sqm | |||||||
Display Color | 16.7million | |||||||
Viewing Angle | 110°(Horizontal),50°(Vertical) | |||||||
Best Viewing Distance | 5m~150m | |||||||
Max Power Consumption | 520w/sqm | |||||||
Average Power Consumption | 208 w/sq.m | |||||||
Refresh Rate | 16bit ≥2880; 14bit ≥4800; 10bit ≥9600 | |||||||
Input Voltage | AC220V/50H or AC110V/60H | |||||||
Output Voltage | DC5V 60A/80A | |||||||
Grey Scale Levels | 16bit | |||||||
Installation Way | Hanging / Stacking / Permanent Installation | |||||||
Drive IC | Taiwan MBI/Domestic High refresh rate IC(Optional) | |||||||
Life-span | 100,000 hours | |||||||
Protection Level | IP30 | |||||||
Failure percentage of leds | less than 0.0003 | |||||||
Working Temperature | -10~40°C | |||||||
Drive Mode | 1/3 scan constant current | |||||||
Working Humidity | 10%~90% | |||||||
LED Encapsulation | Self-development Side view LED lamp | |||||||
Eliminate Ghost Line | Yes | |||||||
Working Voltage | DC5V | |||||||
weight | <9.6kg | |||||||
Control method | Synchronization & Asynchronization | |||||||
Control System | Control System | Mooncell/ Nova/ Linsn(Optional) | ||||||
Software | LED Studio | |||||||
Input Signal | DVI/HDMI/DP | |||||||
PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vist |
Transparent led screen feature
Methods for Quality Assurance
a. Aging testing :100% fully test Condition: 72 hours with 256 gray level
b. Vibration Testing:Condition: 3-5 min up and down in 5mm range
Advantage
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 8-10 working days
8. Excellent R&D team,factory Price and assure you quality goods.
Payment and delivery
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and .
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 8-10working days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 12 years.Mass and professional production ensure
our led display’s competitiveness.
