Product Details:
|
Product Nam: | P10mm Truck Mobile LED Display | Cabinet Material: | Iron |
---|---|---|---|
Module Size: | 320mmx160mm | Screen Dimension: | Customized Size |
Brightness: | 5500cd | Warranty: | 5 Years |
Life Span: | 100,000H | MTBF: | 10000H |
High Light: | P10mm Mobile Digital Billboard,32x16dots Mobile Digital Billboard |

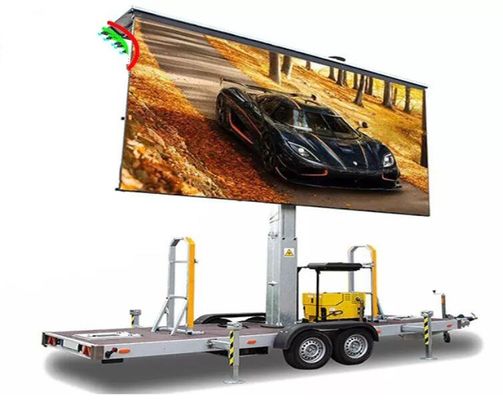

Exterior High Brightness Full Color P10mm Truck Mobile LED Display With Iron Cabinet
Shenzhen X-Media Co.,Ltd is a professional manufacturer of LED display, LED lighting and peripheral products R & D, production, sales and service in one of the high-tech enterprises in Shenzhen. We have this huge LED industry base,
With advanced management mode, strong R & D capability and abundant raw material resources, to create high quality products. And according to the market demand, has formed a complete system of products. We have the spirit of "quality, integrity, efficient" business philosophy, market-oriented, technology-based, unite, strive for the company's future.
Specifictions | ||||||||
LED Lamps | Type | SMD3535 (High Brightness LEDs) | ||||||
LED Standard | Real Pixel(1R1G1B) | |||||||
LED Module | Pixel Pitch | 10mm | ||||||
Module Size | 320mmx160mm | |||||||
Module Resolution | 32*16dots | |||||||
LED Cabinet | Cabinet Size | 960mmX960mm | ||||||
Cabinet Resolution | 96pixels *96pixels | |||||||
Cabinets Material | Iron steel cabinet | |||||||
LED Display | Pixel Density | 10000pixels/sq.m | ||||||
Drive IC | MBI5124 | |||||||
Brightness | >5500cd/sqm | |||||||
Display Color | 16.7million | |||||||
Viewing Angle | 110°(Horizontal),50°(Vertical) | |||||||
Best Viewing Distance | 1m~150m | |||||||
Max Power Consumption | 600 w/sq.m | |||||||
Average Power Consumption | 300 w/sq.m | |||||||
Weight | 35Kgs/sq.m | |||||||
Refresh Rate | 1920hz | |||||||
Control System | Control method | Synchronization & Asynchronization | ||||||
Software | LED Studio (LINSN) |
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 3g 4g and 5g and wifi controll will be welcome)
Our Service
1)Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment
2) Installation and debugging
BESD could send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.
3) Warranty
Warranty: 5 years warranty, lifetime maintenance
Equip with free spare parts. The first 5 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 5years, service is still available, but would charge for labor, material and freight cost that generates.
4) Maintenance
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges
After maintenance period, only charge the material cost and labor cost.
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 5 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
Payment and delivery
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and .
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 12 years.Mass and professional production ensure
our led display’s competitiveness.
