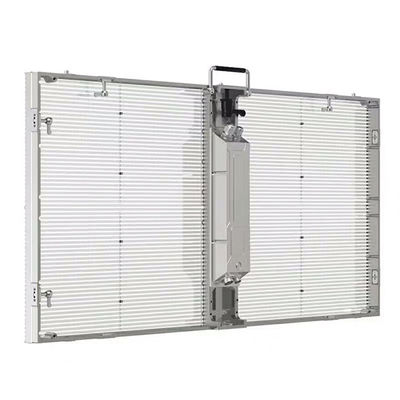

DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light

DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light
DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light

Large Image :  DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light

Product Details:
Place of Origin: China,Shenzhen
Brand Name: X-media
Certification: CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Model Number: P15.6
Payment & Shipping Terms:
Minimum Order Quantity: 5sq.m
Price: Negotiation
Packaging Details: Flight case, wooden case and carton box and foam package
Delivery Time: 8~10 working days
Payment Terms: T/T, MoneyGram,Cash
Supply Ability: 5,000sq.m/month

DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light

Description
Product Name: LED Mesh Screen Cabinet Material: Aluminum
Module Size: 1000X500mm Screen Size: Customized Design
Brightness: 7000cd/sqm Warranty: 5 Years
Life Time: 100,000H MTBF: 10,000H
High Light:

DIP LED Curtain Display

,

P15.6mm LED Screen Mesh

,

DIP LED Screen Mesh

P15.6mm Full Color DIP LED Mesh Screen 5 Years Warranty KN Light Led



Shenzhen X-Media Electronics Co.,Ltd is established in 2008. we are a leading manufacturer and provider of technical solution of full color indoor an outdoor ledisplay, rental LED display, led modules and so on,



We have our outstanding research and develop department and after-sales service workers, the separately design ability. Our product mainly included the RGB led display, outdoor full color led display, indoor full color led display, curtain led display, advertising led display, stage led display, led billboard, color led display, single color led display, rental led display, stadium led display, led display module, car led sign display, hanging led display, mobile truck led display



It can be used on the shopping mall,bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi, and so on. we adopt many methods and very good after-sales service to sell our product all over the world.. Whenever and wherever we are , we always take the principle that professional makes good quality, provide the perfect product and service for our customer.



Features:

1. High transparency;
2. Ultra light and slim;
3. Front & back maintenance;
4. Smart lock system, easy installation;
5. Curve cabinet available;
6. High brightness;
7. Apply to both outdoor fixed and rental projects.

Specification
Product
P10.42
P15.6
P15.6(DIP)
Pitch
10.42mm
15.6mm
15.6mm
Density(pixels/m²)
9216
4096
4096
LED Type
SMD3535
SMD3535
DIP346
Brightness
6000nits
6000nits
8000nits
Scan Method
1/3
Static
Static
Cabinet Size
500*1000mm
Module Size
250*500mm
Cabinet Material
Diecasting Aluminum
Cabinet Weight
9.5KG
11KG
Protection Level
IP65
Cabinet Maintenance
Front&Rear Service
Transparency
20%
30%
25%
Max Power Consumption
800w/m²
800w/m²
600w/m²
Average Power Consumption
280w/m²
280w/m²
200w/m²
Refresh Rate(Hz)
2880-3840HZ
Grey Scale
16 bit
Viewing Angle
H140°,V140°
H140°,V140°
H140°,V70°
Voltage
AC100-240V(50-63HZ)
Working Temperature
-30°C -+65°C
Working Humidity
10%-90%RH
Color Temperature
6000-9500K
Certifications
EMC/CE/RHOS/CCC/FCC/ISO
Available Pixels
P15.6-25 and P15.6-31.25 cabinet size: 1m*1m







DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 0



DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 1



DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 2



DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 3



DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 4



♦ Applications

Stage, Sports, advertising, traffic, events, stadium, shopping center, airport, exhibitions, car shows,

fashion shows, concerts, ceremonies, entertainment,etc.



♦ Our advantages

Professional Manufacturer of led display



1. OEM service, No MOQ

2. Easy installation, regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case, you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 8-10 working days

8. Excellent R & D team, factory Price and assure you quality goods.



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 5

DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 6



DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 7



DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 8



DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 9

DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 10



DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 11



Company Introduction

DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 12





Exhibition

DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 13



Certification

Quality Management System Certificate: ISO14001, OHSAS18001, ISO9001

Product Certificate: CCC, CE, FCC, LVD, ROHS, CHINA CERTIFICATE FOR ENERGY CONSERVATION PRODUCT
DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 14

DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 15

DIP LED Curtain Display , P15.6mm LED Screen Mesh KN Light 16


Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing:
1, Dimension ( Width and Height)
2, Location of installation ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
