Product Details:
|
| Product Name: | Pasting Led Screen | Cabinet Material: | Aluminum |
|---|---|---|---|
| Module Size: | 480x320mm | Cabinet Size: | 480x320mm |
| Brightness: | 5500cd | Warranty: | 5 Years |
| Life Time: | 100,000H | MTBF: | 10,000H |
| High Light: | P10mm Special LED Display,Translucent LED Film Display,P10mm LED Film Display |
||

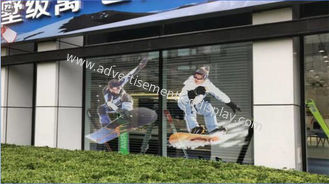

Indoor P10 Pasting Led Screen Fixed On Glass, Film LED Display For Super Market
Product Description
Transparent LED Film screen is a high-end product that breaks the conventional LED display
Mount components on highly transparent PCB boards using specific bare chips
Through the unique capping process, the display module is integrated into a highly transparent optical lens substrate with a high transparent display with a thickness of only 1~3mm.
Light, thin, transparent, easy to install, and achieve efficient and scalable advertising media
Turning glass into an advertising medium to develop more and more valuable advertising spots
Product features:
Light ( ≤3.5kg / ㎡)
Thin ( 1 ~ 3mm)
Translucent and
transparent Can be cut
and bent High and low brightness can be switched No component on the screen
Product Features, Give you a more perfect product
Specification
| Model | P2.5*5 | P4*8 | P5*10 | P6 | P6.5 | P8 | P10 | P16 |
| Model size(mm) | 480x160 | 480x256 | 480x320 | 480x192 | 481X208 | 480x256 | 480x320 | 480x192 |
| Transparency | 45% | 60% | 68% | 50% | 60% | 60% | 70% | 75% |
| weight(Kg/㎡) | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 |
| Thickness(mm) | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
| Pixel pitch(mm) | 2.5X5 | 4X8 | 5X10 | 6X6 | 6.5X6.5 | 8X8 | 10X10 | 16X16 |
| brightness(cd/㎡) | 3000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 3000 |
| Chromaticity uniformity | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| viewing angle( °) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Refresh rate(Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Average power(w/㎡) | ≤420 | ≤420 | ≤300 | ≤460 | ≤400 | ≤420 | ≤400 | ≤300 |
| Maximum power consumption(w/㎡) | ≤850 | ≤850 | ≤900 | ≤920 | ≤800 | ≤850 | ≤850 | ≤600 |
| Working temperature(℃) | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ | -20℃-55℃ |
| Working humidity(RH) | 10%-90% | 10%-90% | 10%-90% | 10%-90% | 10%-90% | 10%-90% | 10%-90% | 10%-90% |
| Driving | Static | Static | Static | Static | Static | Static | Static | Static |
| Control system | colorlight | colorlight | colorlight | colorlight | colorlight | Colorlight | colorlight | colorlight |
Save cost, No need for steel frame structure, no need to change the appearance of the building.
effectively reducing transportation and installation costs
LED Adhesive film Installation way
Application
Show Case
♦ Our advantages
Professional Manufacturer of led display
1. OEM service, No MOQ
2. Easy installation, regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case, you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 8-10 working days
8. Excellent R&D team, factory Price and assure you quality goods.
Our Service
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period within 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly. What’s
more, unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology, our company have built
effective modular production. We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it. Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales: Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales: We will track the products usage and then constantly perfect our products.
Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing :
1, Dimension ( Width and Height)
2, Location of installation. ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need.
