Product Details:
|
| Product Name: | Sphere Led Screen | Cabinet Material: | Iron |
|---|---|---|---|
| Module Size: | Triangle Module | Screen Size: | Customized Design |
| Brightness: | 2100cd | Warranty: | 5 Years |
| Life Time: | 100,000H | MTBF: | 10,000H |
| High Light: | P3 Special LED Display,360 Degree Sphere LED Screen,P3 Sphere LED Screen |
||

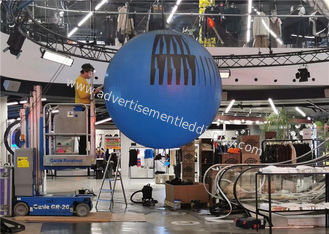

Indoor P3 Sphere LED Screen 5 Years Warranty, RGB Led Ball Display
♦ Advantages
1. 360 degree view angle, full color.
2. New technical, new design.
3. Normally use in hotel, stage, club etc.
4. Shinning color, impressed display.
5. Mobile, hanging install, set install, full in aluminum construction design
6. The diameter according to customers’ requirements, digital control finish
7. Sychronous & asynchronous control display
8. Good cooling, insurance the led ball stablility
Welcome to Shenzhen X-Media Co., Ltd we are the most professional provider of outdoor and indoor led displays with 13 years experience, we have the widest business coverage, the most complete product lines, the greatest comprehensive strength in the industry.with the perfect global marketing network, our products are sold to The Middle East, South America, North America, Europe, Southeast Asia, Australia, Africa and other regions.
As always do, X-media will continue to spare no efforts in reinforcing its position as a product, technology and market. we always contribute our efforts to help our customers improve visual effect and fulfill its social responsibilities.
the led ball is made by 5 shapes indoor p4 soft module, 1.2m diameter spherical steel structure and mooncell control card.this type point density: 62500dots/sqm.
Specification
| Resolution/mm | 3 | |||||
| Pixel configuration | 1R1G1B | |||||
| Pixel density/pixels/m² | 111111/m² | |||||
| Module resolution | Triangle module | |||||
| Module size/mm | Triangle module | |||||
| View distance | 4-150m | |||||
| Single point brightness adjust | Can be added | |||||
| Single point color adjust | Can be added | |||||
| White balance brightness | 2100 cd/㎡ | |||||
| Color temperature | 6500K-9500K | |||||
| Horizontal view angle | 160(degrees) | |||||
| Vertical view angle | 160(degrees) | |||||
| Signal Process bit | 10 or 16bit | |||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||
| Driving mode | Constant driving current | |||||
| Scanning mode | (1/16 scan) | |||||
| Frame rate | 60Hz | |||||
| Refresh frequency | >3840Hz | |||||
| Control mode | Computer synchronous | |||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||
| Out of control point | <1/10000 | |||||
| Working hours | ≥72hours | |||||
| Mean Time Between Failure | >10000hours | |||||
| Life time | 100000hours | |||||
| Life-all-white(brightness halving) | 100000hours | |||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||
| Maximum power:/㎡ | <700W | |||||
| Average power:/㎡ | <200W | |||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||
| Luminous point width between centres | Deviation<3% | |||||
| Brightness uniformity | <10% | |||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||
| Contrast | (1000:1) | |||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||
| Humidity(working) | working:10-95% | |||||
| Humidity(storing) | storing:10-95% | |||||
Ball led display in workshop
The Epistar Led chip. with SMD and DIP Technology
we adopt the epistar led chip from Taiwan, DIP and SMD led display module will be available
The wire or wireless controll system are available ( 3g 4g 5g and wifi controll will be welcome)
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 5 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
Payment and delivery
1) T/T, 30% deposit, 70% before shippment.
2) 100% in advance.
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Quick Detail
1. Super lighter and thinner;
2. Easy to connection and uninstall;
3. It can display, words, texts, graphics and videos.
4. High resolution and high frequency dynamic image.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service, No MOQ
2. Easy installation, regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case, you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 8-10 working days
8. Excellent R & D team, factory Price and assure you quality goods.
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing, equipments are updated regularly. What’s
more, unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology, our company have built
effective modular production. We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date, we will try our best to fulfill it. Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales: Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales: We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and .
What about your Led Display quality ?
Checking in the whole manufacturing process & 100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 8-10 working days according to your area and quantity.
Is your LED display competitive ?
Yes, we are led display manufacturer for more than 12 years.Mass and professional production ensure
our led display’s competitiveness.
Buy guides:
In order to save you time avoid no necessary troubles, please follow the steps bellowing :
1, Dimension ( Width and Height)
2, Location of installation. ( picture is best)
3, Purpose. ( what are you going to do with the LED Curtain)
4, Star effect or video effect which you need
